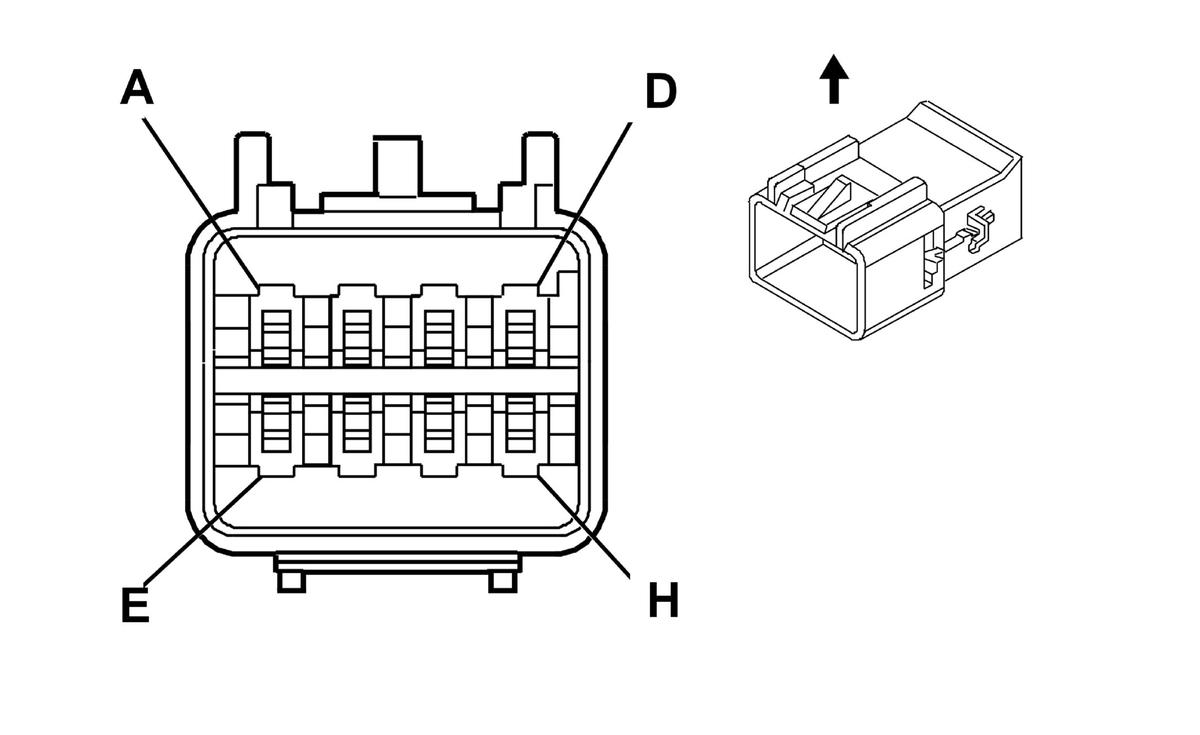

E42R Tail Lamp Assembly - Right TR1+(MAH/MBC)
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 15332150
- Service Connector: 88986250
- Description: 8-Way M 150 GT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
WH/YE |
7541 |
Right Rear Stop Lamp Supply Voltage |
I |
- |
| B - C |
- |
- |
- |
Not Occupied |
- |
- |
| D |
0.5 |
BK |
950 |
Ground |
I |
- |
| E |
0.5 |
BU/VT |
1335 |
Right Rear Turn Signal Lamp Supply Voltage |
I |
- |
| F |
0.5 |
GN/WH |
24 |
Backup Lamp Supply Voltage |
I |
- |
| G |
- |
- |
- |
Not Occupied |
- |
- |
| H |
0.75 |
BK |
950 |
Ground |
I |
- |
