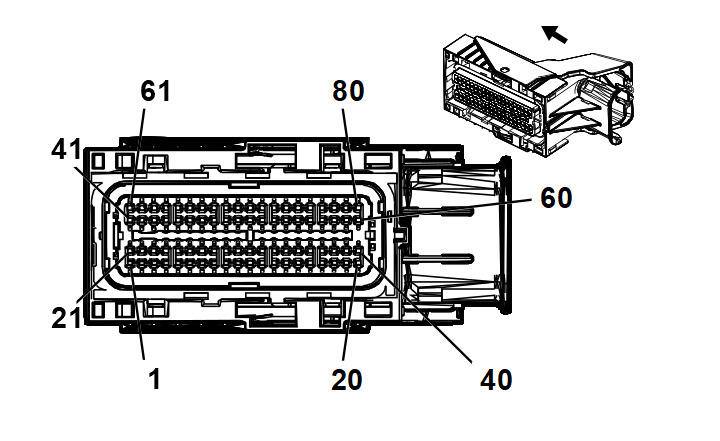

K20 Engine Control Module X2 (L5Q/LV7)

Connector Part Information

Harness Type: Engine
OEM Connector: 34566-1903
Service Connector: 19351902
Description: 80-Way F 0.64 Series, Sealed (BK with BU Terminal Position Assurance)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13575812	J-35616-64B (LT BU)	J-38125-213	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	GY/BU	5282	Camshaft Phaser Exhaust Solenoid (1)	I	-
2	0.5	BN/WH	582	Throttle Actuator Control Close	I	-
3	0.5	YE	581	Throttle Actuator Control Open	I	-
4	-	-	-	Not Occupied	-	-
5	0.5	VT/GY	496	Knock Sensor Signal (1)	I	-
6 - 7	-	-	-	Not Occupied	-	-
8	0.5	WH/BK	3111	Heated Oxygen Sensor Low Signal Bank 1 Sensor (1)	I	-
9	0.5	WH/YE	3121	Heated Oxygen Sensor Low Signal Bank 1 Sensor (2)	I	-
10	-	-	-	Not Occupied	-	-
11	0.5	BK/BN	2752	Throttle Position Sensor Low Reference	I	-
12	0.5	BU/WH	3630	Throttle Position Sensor (SENT1) Signal	I	-
13	0.5	VT/BK	5273	Camshaft Position Exhaust Sensor (1)	I	-
14 - 17	-	-	-	Not Occupied	-	-
18	0.5	BK/BU	2129	Ignition Control Low Reference Bank 1	I	-
19	0.5	BU/WH	2122	Ignition Control (2)	I	LV7
20	0.5 0.5	YE/BU GN/BU	2124 2123	Ignition Control (4) Ignition Control (3)	I I	LV7 L5Q
21	0.5	VT/BN	5284	Camshaft Phaser Intake Solenoid (1)	I	-
22	0.5	BK/BN	6753	Cam Phaser W Return Low Reference	I	-
23	0.5	BK/VT	6754	Cam Phaser X Return Low Reference	I	-
24	0.5	BK/BN	2761	Coolant Temperature Sensor Low Reference	I	-
25	0.5	BK/YE	1716	Knock Sensor Low Reference (1)	I	-
26	-	-	-	Not Occupied	-	-
27	0.5	BU	410	Engine Coolant Temperature Sensor Signal	I	-
28	0.5	GN/WH	432	Manifold Absolute Pressure Sensor Signal	I	-
29	0.5	VT/GY	3110	Heated Oxygen Sensor High Signal Bank 1 Sensor (1)	I	-
30	0.5	VT/BU	3120	Heated Oxygen Sensor High Signal Bank 1 Sensor (2)	I	-
31	-	-	-	Not Occupied	-	-
32	0.5	BK/GN	5301	Camshaft Position Intake Sensor Low Reference (1)	I	-
33	0.5	YE/VT	5275	Camshaft Position Intake Sensor (1)	I	-
34	0.5	BK/GY	5296	Camshaft Position Exhaust Sensor Low Reference (1)	I	-
35	-	-	-	Not Occupied	-	-
36	0.5	BN/GY	4008	Humidity Sensor Signal	I	-
37	0.5	GN/WH	5007	Reverse Switch Signal	I	-
38	-	-	-	Not Occupied	-	-
39	0.5	BU/VT	2121	Ignition Control (1)	I	-
40	0.5 0.5	GN/BU BU/WH	2123 2122	Ignition Control (3) Ignition Control (2)	I I	LV7 L5Q
41	0.5	VT/BU	6270	Crankshaft 60X Sensor Voltage	I	-
42	0.5	WH/RD	2705	Oil Pressure Sensor 5 Volt Reference	I	-
43	-	-	-	Not Occupied	-	-
44	0.5	GY/BU	5300	Camshaft Position Intake Sensor Supply Voltage (1)	I	-
45	0.5	GY/YE	5297	Camshaft Position Exhaust Sensor Supply Voltage (1)	I	-
46	-	-	-	Not Occupied	-	-
47	0.5	BN/RD	2701	Throttle Position Sensor 5 Volt Reference	I	-
48	0.5	BK/GN	469	Manifold Absolute Pressure Sensor Low Reference	I	-
49	0.5	BN	25	Charge Indicator Control	I	-
50	0.5	BK/VT	6272	Crankshaft 60X Sensor Low Reference	I	-
51	0.5	GN	6271	Crankshaft 60X Sensor Signal	I	-
52 - 53	-	-	-	Not Occupied	-	-
54	0.5	YE/BN	331	Oil Pressure Sensor Signal	I	-
55 - 56	-	-	-	Not Occupied	-	-
57	0.5	GN/BU	428	EVAP Canister Purge Solenoid Control	I	-
58	0.5	YE/WH	1745	Fuel Injector Control (2)	I	LV7
59	0.5 0.5	BN/VT YE/WH	1746 1745	Fuel Injector Control (3) Fuel Injector Control (2)	I I	LV7 L5Q
60	0.5	GY/WH	3113	Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (1)	I	-
61 - 66	-	-	-	Not Occupied	-	-
67	0.5	GY/RD	2704	Manifold Absolute Pressure Sensor 5 Volt Reference	I	-
68 - 69	-	-	-	Not Occupied	-	-
70	0.5	BK/VT	2755	Oil Pressure Sensor Low Reference	I	-
71	0.5	GY	23	Generator Field Duty Cycle Signal	I	-
72 - 74	-	-	-	Not Occupied	-	-
75	0.5	BU/WH	890	Fuel Tank Pressure Sensor Signal	I	-
76 - 77	-	-	-	Not Occupied	-	-
78	0.5	GN/YE	1744	Fuel Injector Control (1)	I	-
79	0.5 0.5	BN/YE BN/VT	844 1746	Fuel Injector Control (4) Fuel Injector Control (3)	I I	LV7 L5Q
80	0.5	GY/WH	3122	Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (2)	I	-
