K43 Power Steering Control Module X2

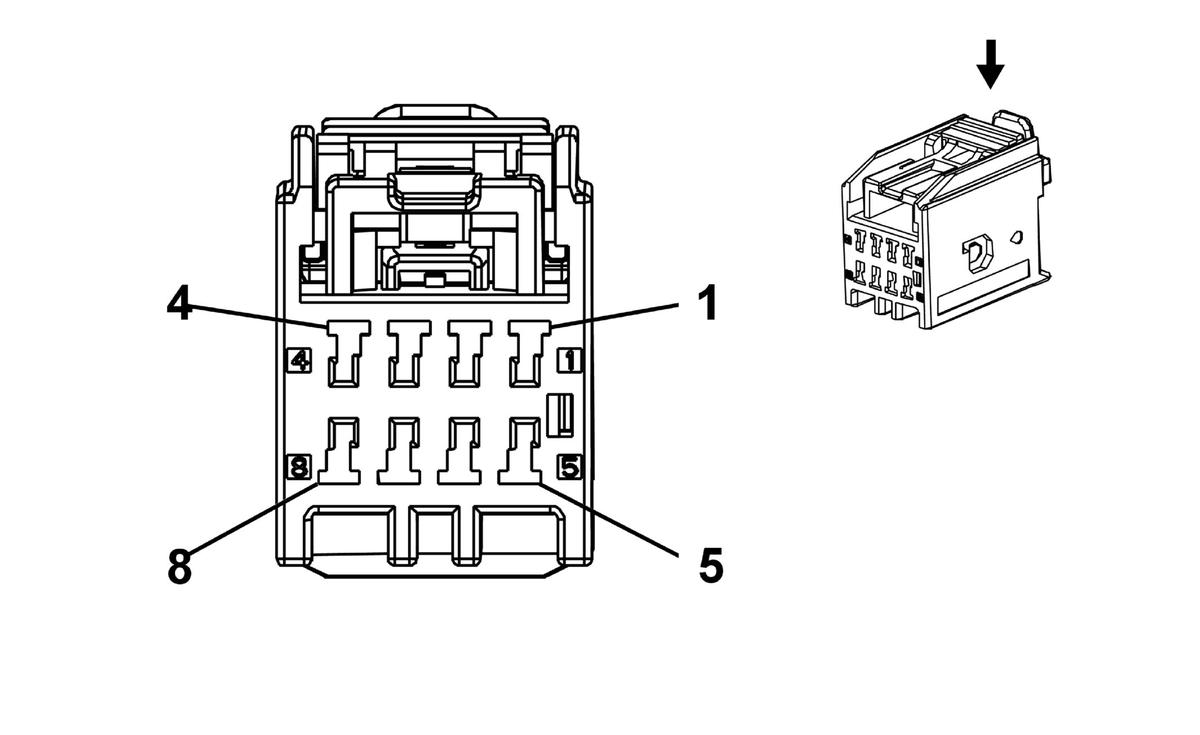

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-64B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 0.35 0.35 |
WH/BU WH/BU WH/BU |
5986 5986 5986 |
Serial Data Communication Enable Serial Data Communication Enable Serial Data Communication Enable |
I I I |
(NJ1/NXA)+(AJ3/AK5/AYC/AYF) (NJ1/NXA)+AR1 (NJ1/NXA)+(AJ3/AK5/AYC) |
| 2 | 0.5 | BU | 2500 | High Speed GMLAN Serial Data (+) (1) | I | - |
| 3 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data (-) (1) | I | - |
| 4 - 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.5 0.5 |
BU BU |
2500 2500 |
High Speed GMLAN Serial Data (+) (1) High Speed GMLAN Serial Data (+) (1) |
I I |
LHD+(NJ1/NXA) RHD+(NJ1/NXA) |
| 8 | 0.5 0.5 |
WH WH |
2501 2501 |
High Speed GMLAN Serial Data (-) (1) High Speed GMLAN Serial Data (-) (1) |
I I |
LHD+(NJ1/NXA) RHD+(NJ1/NXA) |
