Installation Procedure

Steering Column Lock Control Module (1) @ Steering Column - Install

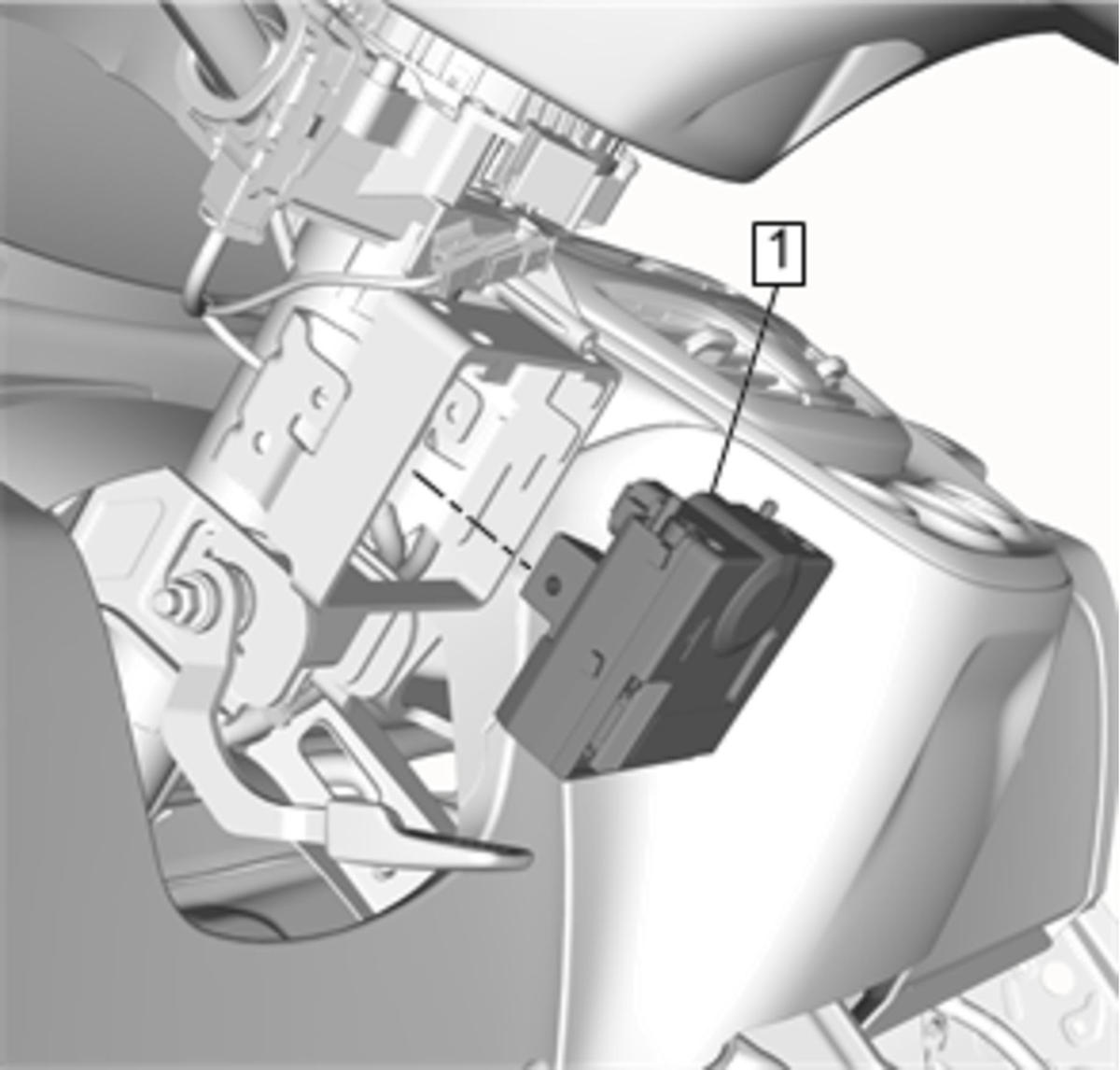

Fig 1: Steering Column Lock Control Module
Courtesy of GENERAL MOTORS COMPANY
Steering Column Lock Control Module Bolt-Side (1) - Install and tighten [2x] 9 N.m (80 lb in)

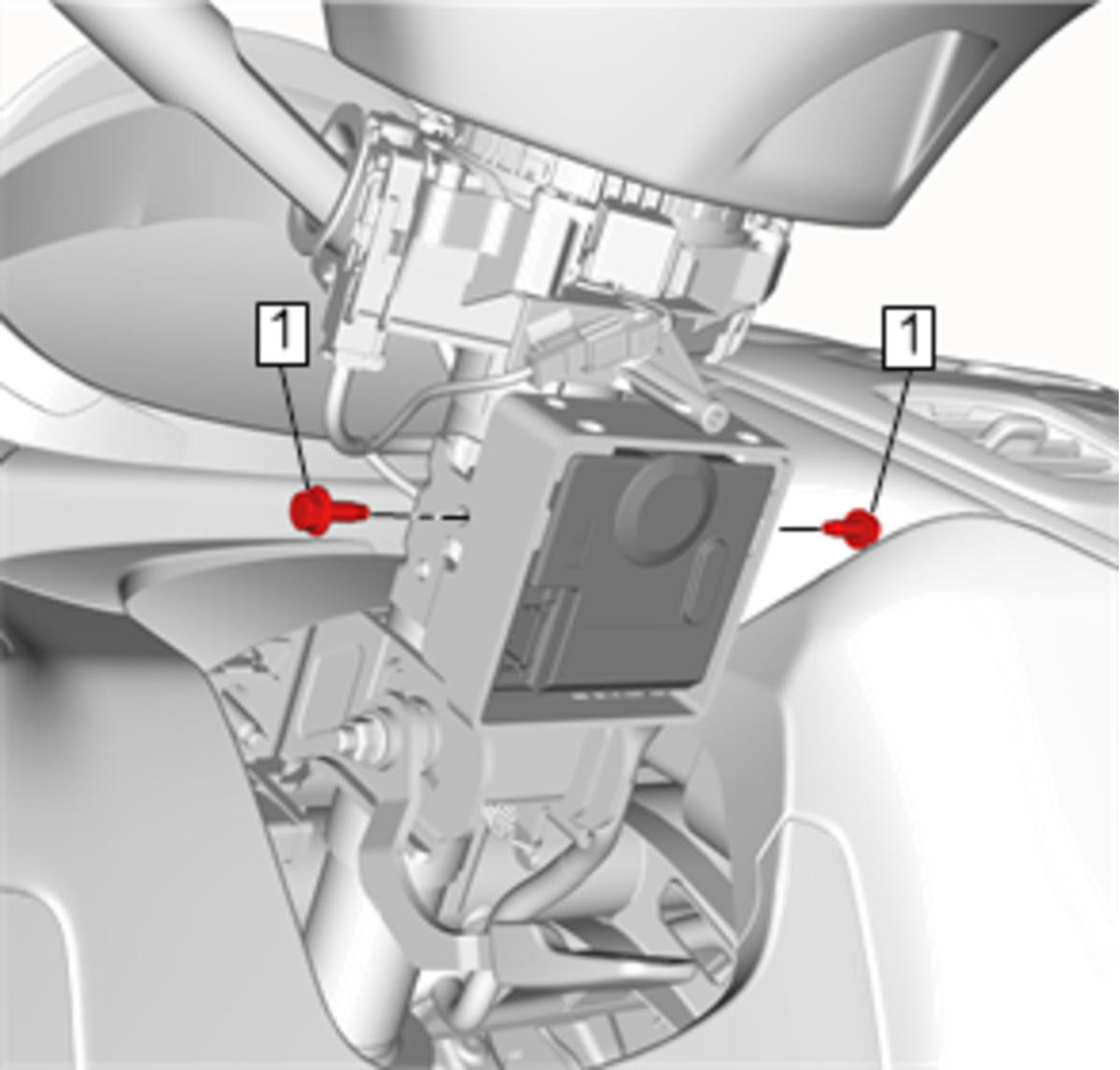

Fig 2: Steering Column Lock Control Module Bolt-Side
Courtesy of GENERAL MOTORS COMPANY
Steering Column Lock Control Module Bolt-Front (1) - Install NEW [2x]

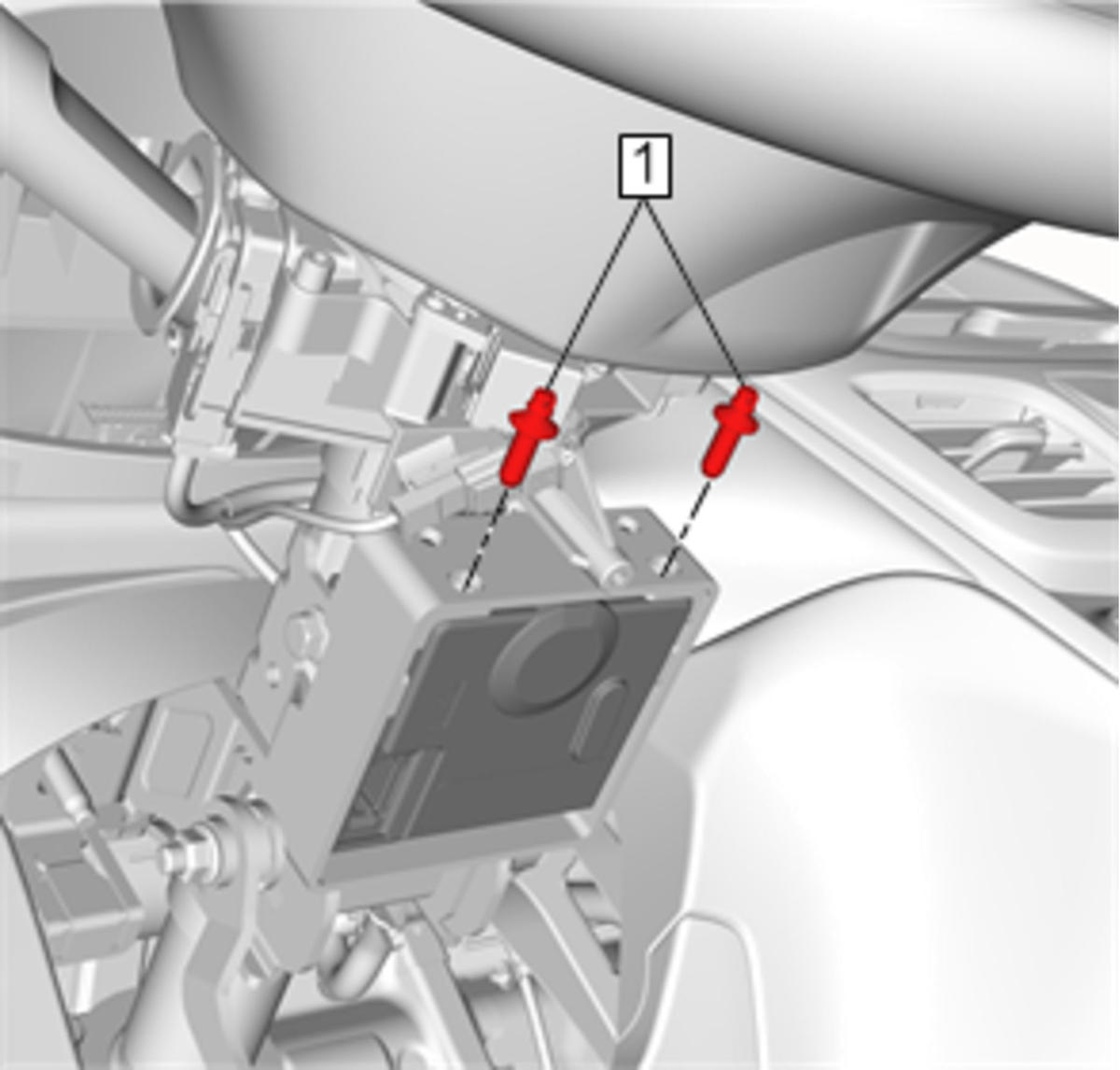

Fig 3: Steering Column Lock Control Module Bolt-Front
Courtesy of GENERAL MOTORS COMPANY

Tighten the bolts until the bolt heads break off.
Electrical Connector (1) @ Steering Column Lock Control Module - Connect

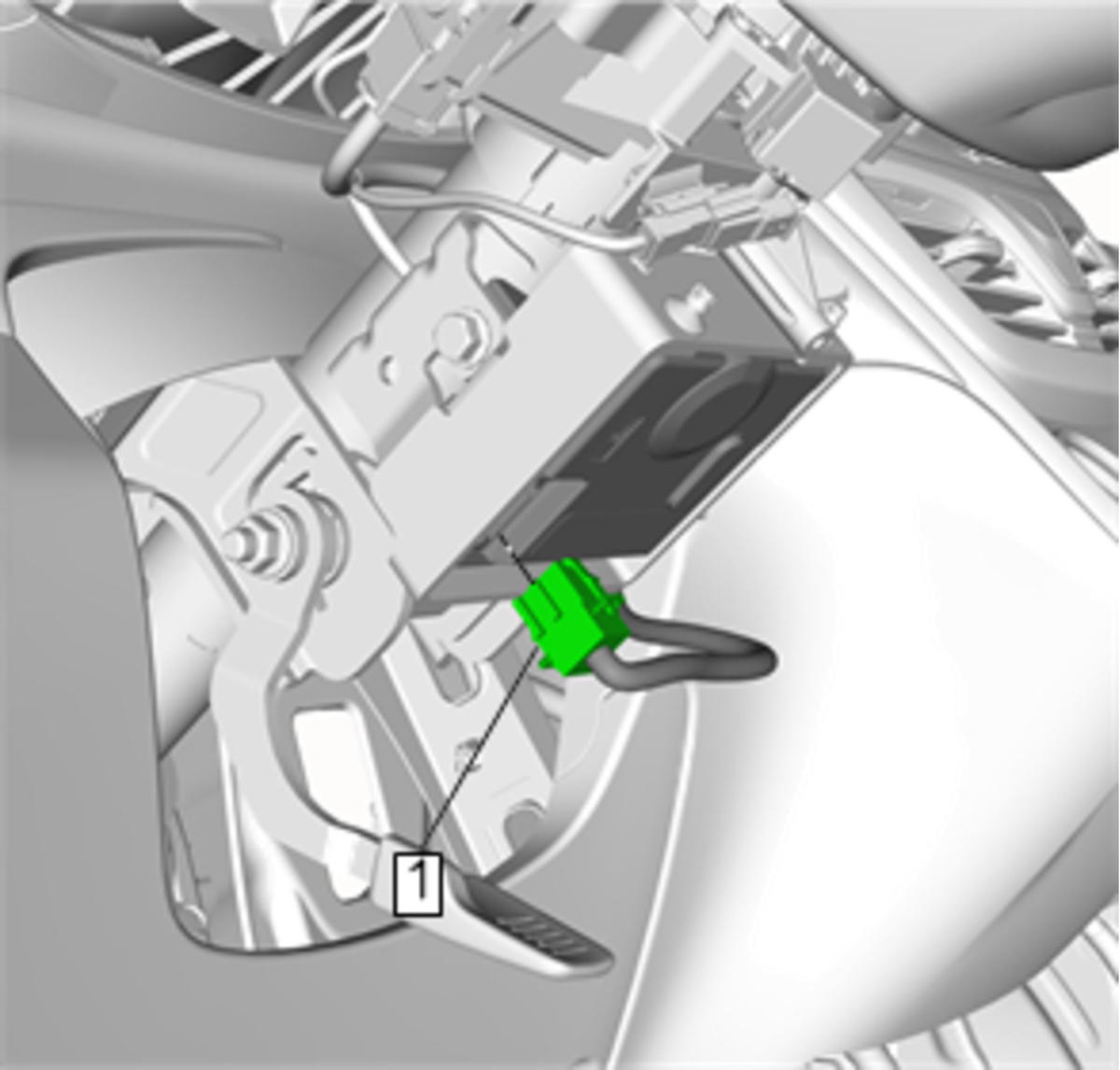

Fig 4: Electrical Connector And Steering Column Lock Control Module
Courtesy of GENERAL MOTORS COMPANY
Steering Column Lower Trim Cover - Install - Steering Column Lower Trim Cover Replacement
Steering Column Upper Trim Cover - Install - Steering Column Upper Trim Cover Replacement
Program the steering column lock control module. Refer to Control Module References
