Installation Procedure

Install the front wheel speed sensor (2) to the knuckle.

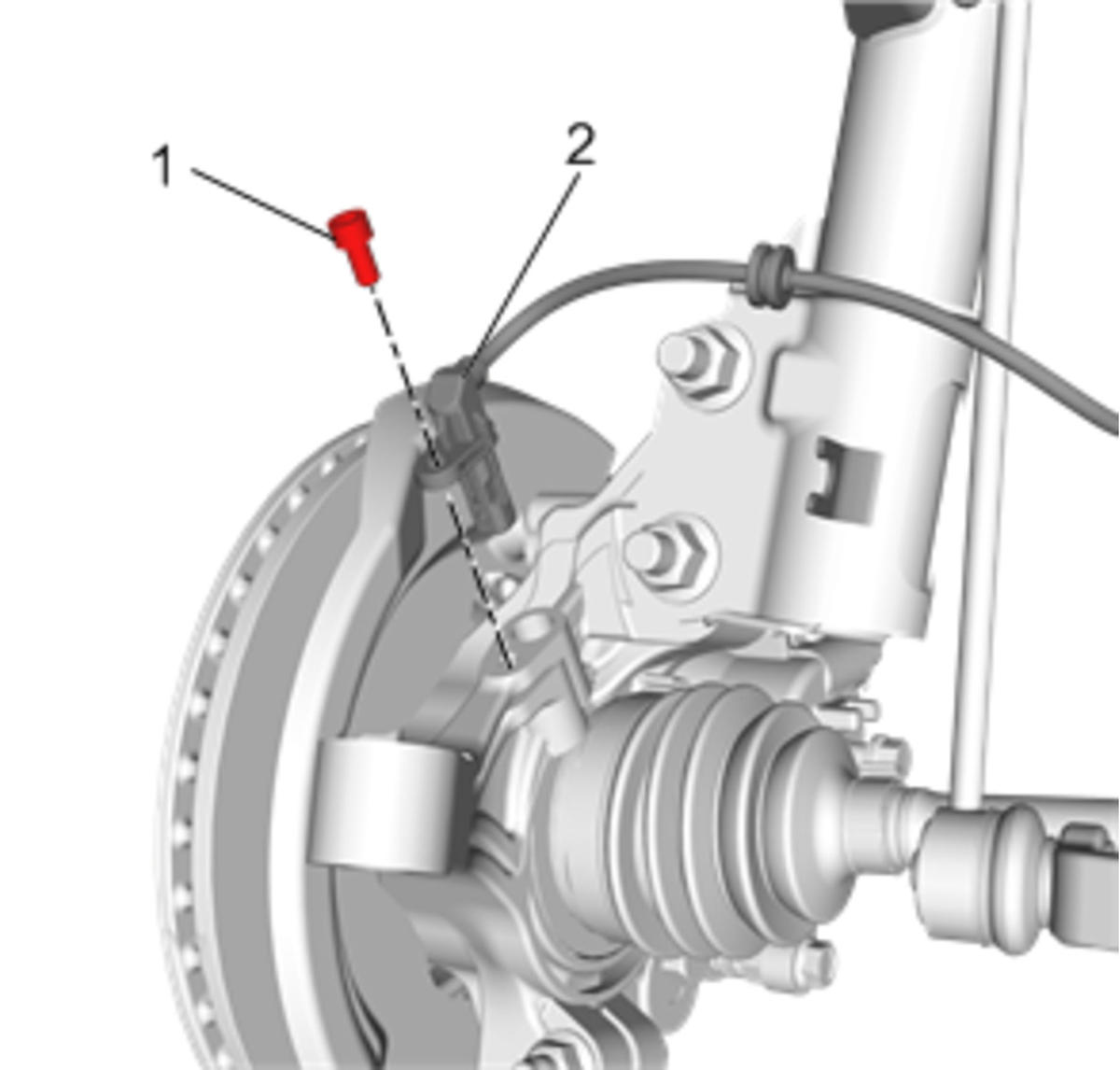

Fig 1: Front Wheel Speed Sensor And Bolt
Courtesy of GENERAL MOTORS COMPANY
Install the front wheel speed sensor bolt and tighten to 8.5 N.m (75 lb in).
CAUTION: Refer to Fastener Caution .
Attach the front wheel speed sensor harness (3) to the front strut mounted bracket (2).

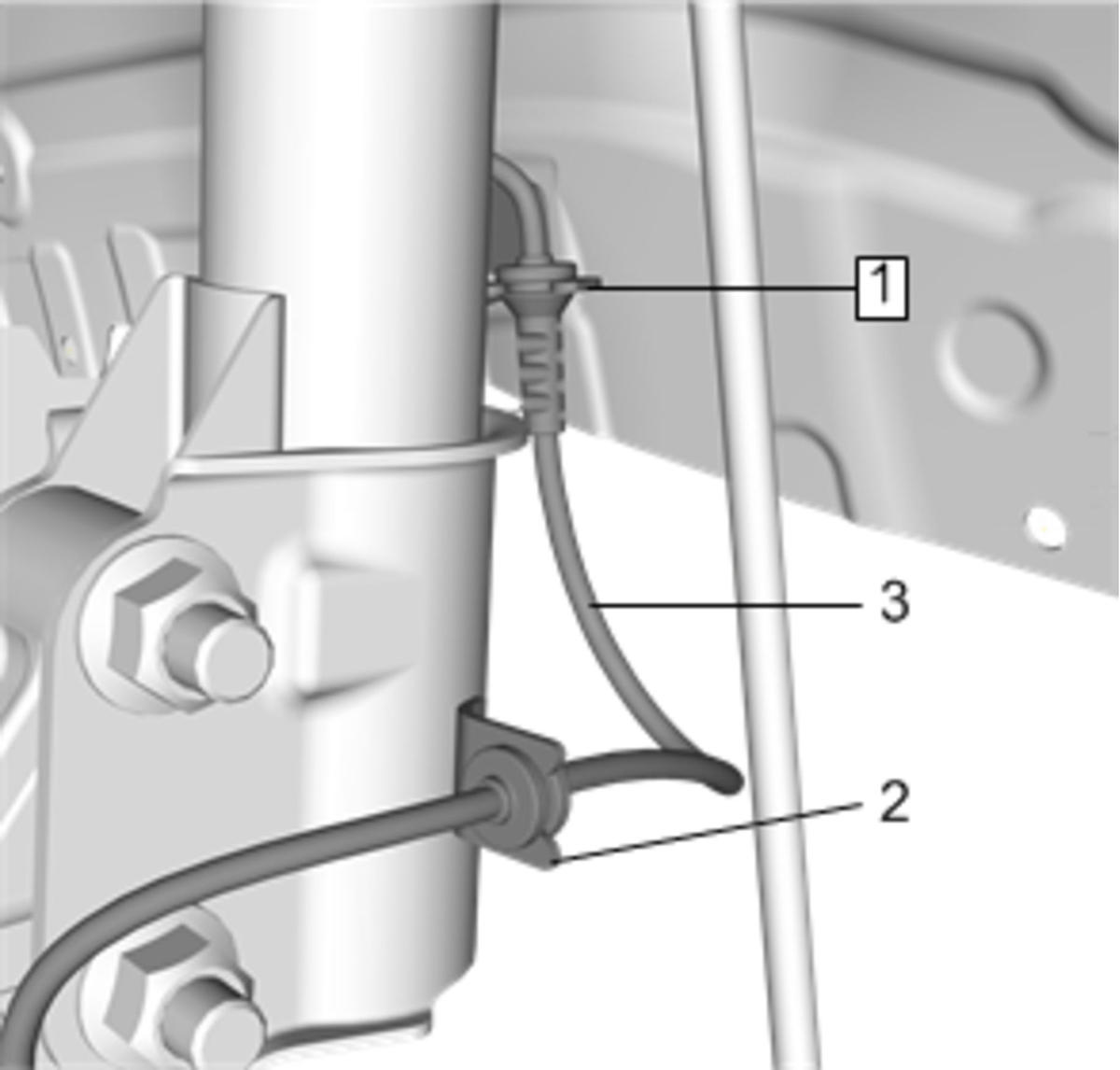

Fig 2: Front Wheel Speed Sensor Harness And Body Frame Mounted Bracket
Courtesy of GENERAL MOTORS COMPANY
Attach the front wheel speed sensor harness (3) to the body frame mounted bracket (1).
Connect the front wheel speed sensor electrical connector (2) to the forward lamp wiring harness.

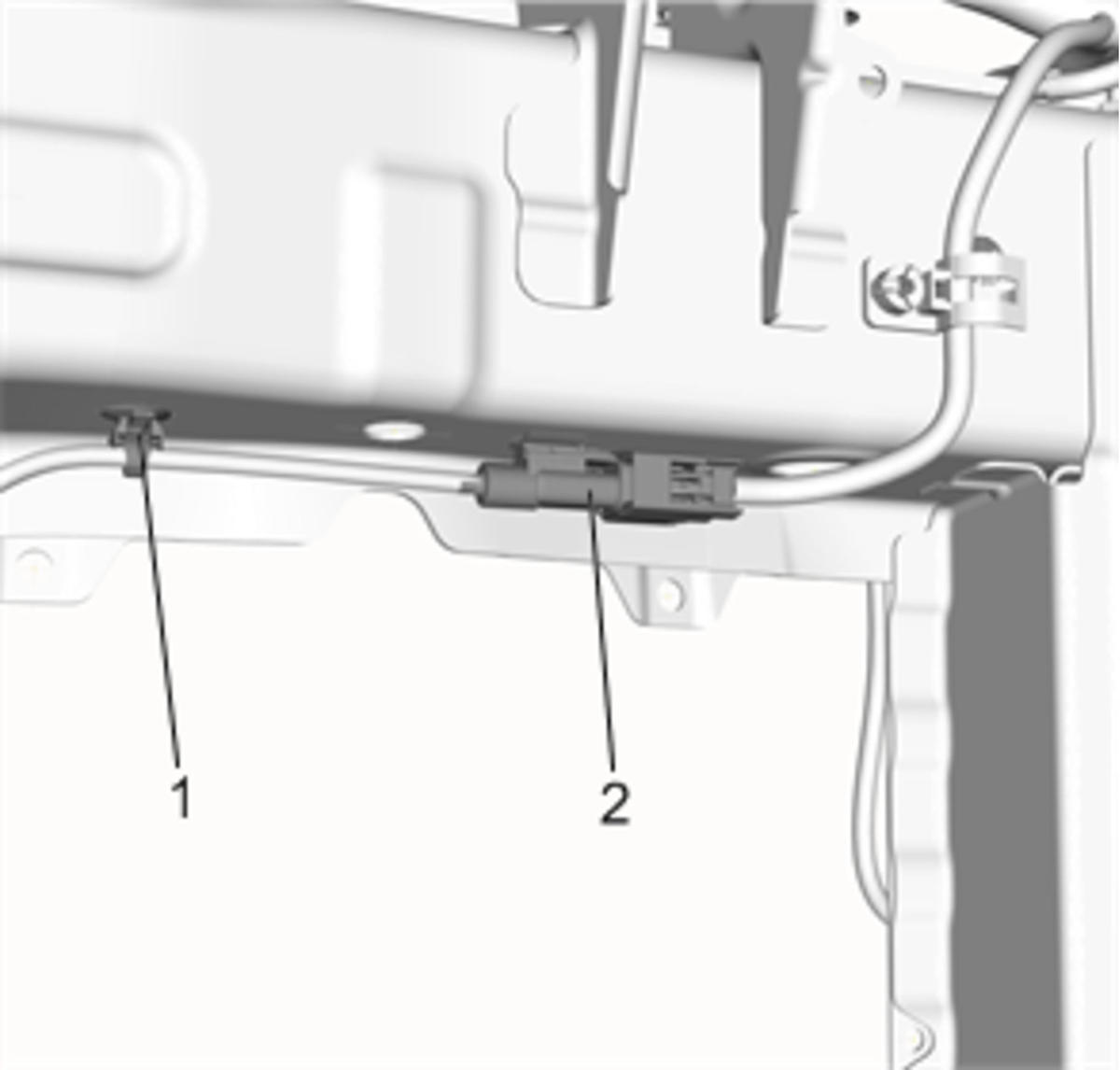

Fig 3: Front Wheel Speed Sensor Harness Clip And Electrical Connector
Courtesy of GENERAL MOTORS COMPANY
Attach the front wheel speed sensor harness clip (1) to the front compartment front inner side rail.
Install the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement .
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
