Accelerator Pedal with Position Sensor Assembly Replacement

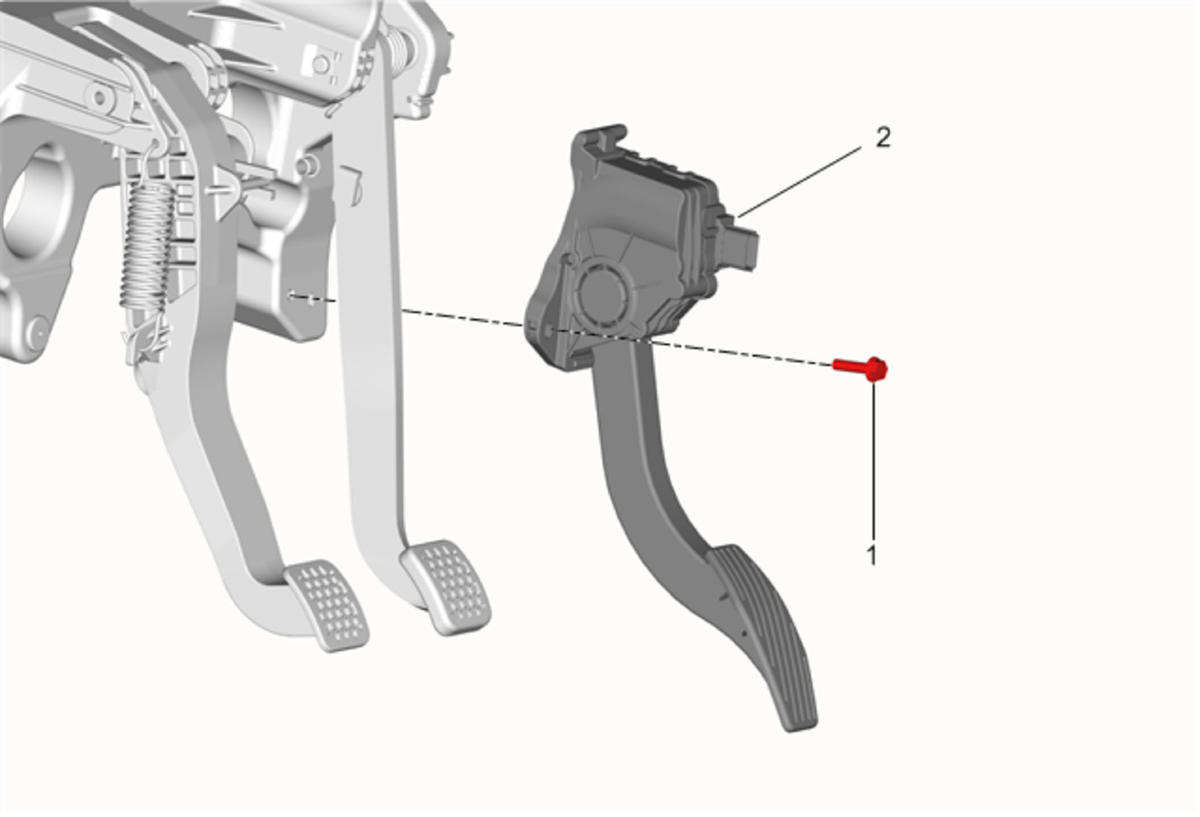

Fig 1: Accelerator Pedal with Position Sensor Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Accelerator Pedal Pad Bolt CAUTION: Refer to Fastener Caution . Tighten  7 N.m (62 lb in)
2	Accelerator Pedal Assembly Procedure  Disconnect the electrical connector.
