Communication Module Antenna Replacement
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

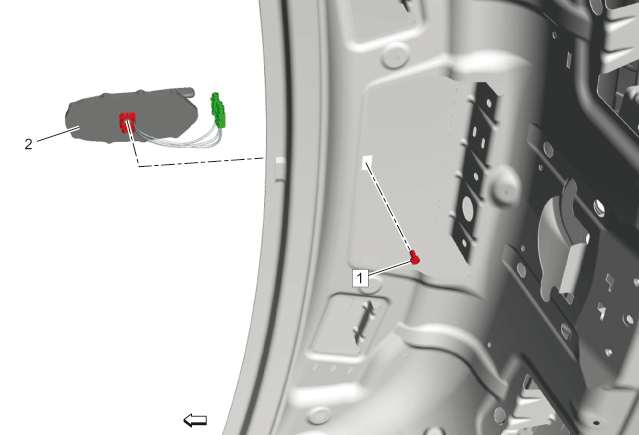

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Compartment Lid Inner Panel Trim Replacement |
|
| 1 | Communication Module Antenna Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Communication Module Antenna Procedure Disconnect the electrical connector. |
