Data Memory Card Reader Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower center compartment. Refer to Instrument Panel Lower Center Compartment Replacement .

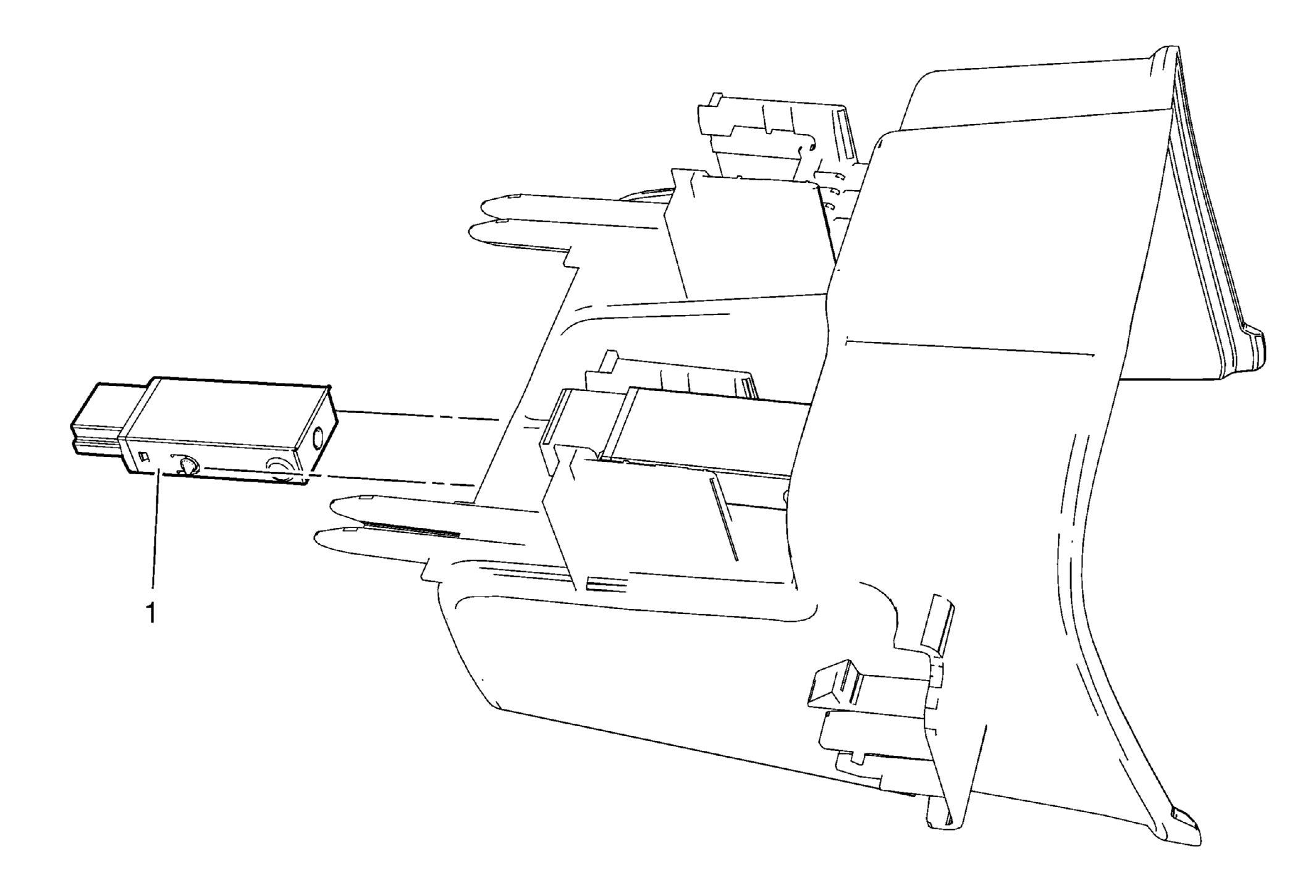

1	Data Memory Card Reader Procedure Disconnect the electrical connector. Unlock retaining tabs from the instrument panel lower compartment.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower center compartment. Refer to Instrument Panel Lower Center Compartment Replacement .

Data Memory Card Reader

Procedure

Disconnect the electrical connector.
Unlock retaining tabs from the instrument panel lower compartment.
