Mobile Telephone Control Module Bracket Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

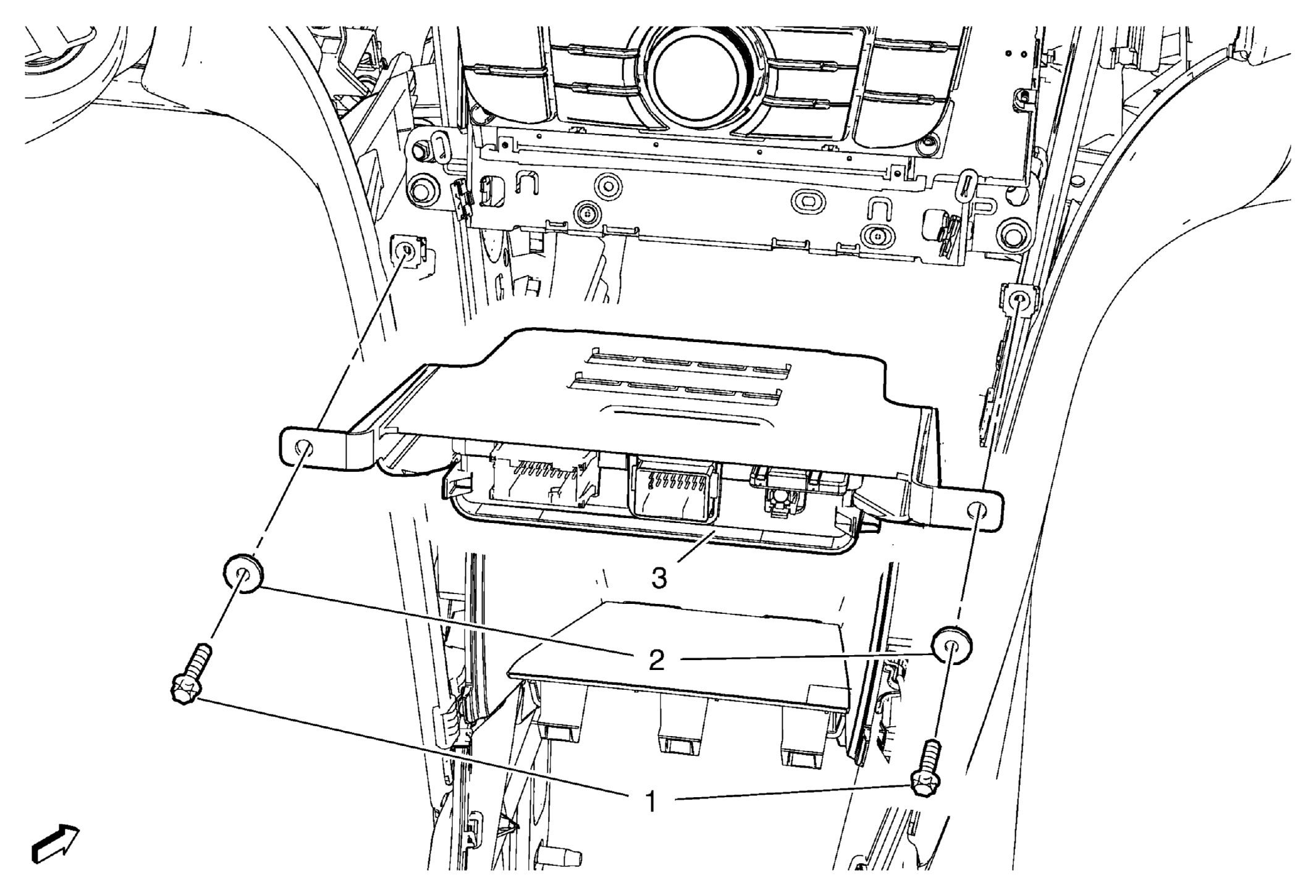

GM2189506
Callout Component Name
Preliminary Procedure
Remove radio control assembly. Refer to Radio Control Assembly Replacement .
1 Mobile Telephone Control Module Bracket Bolts (Qty: 2)
CAUTION:

Refer to Fastener Caution .

2 Mobile Telephone Control Module Bracket Washer (Qty: 2)
3 Mobile Telephone Control Module Bracket
Procedure
Remove the mobile telephone control module from the mobile telephone control module bracket.
