Back of HVAC Assembly Components

Back of HVAC Assembly Components

Items
1. B39 A/C Evaporator Temperature Sensor
2. M8 Blower Motor M8 Blower Motor
3. M6R Air Temperature Door Actuator - Right M6R Air Temperature Door Actuator - Right

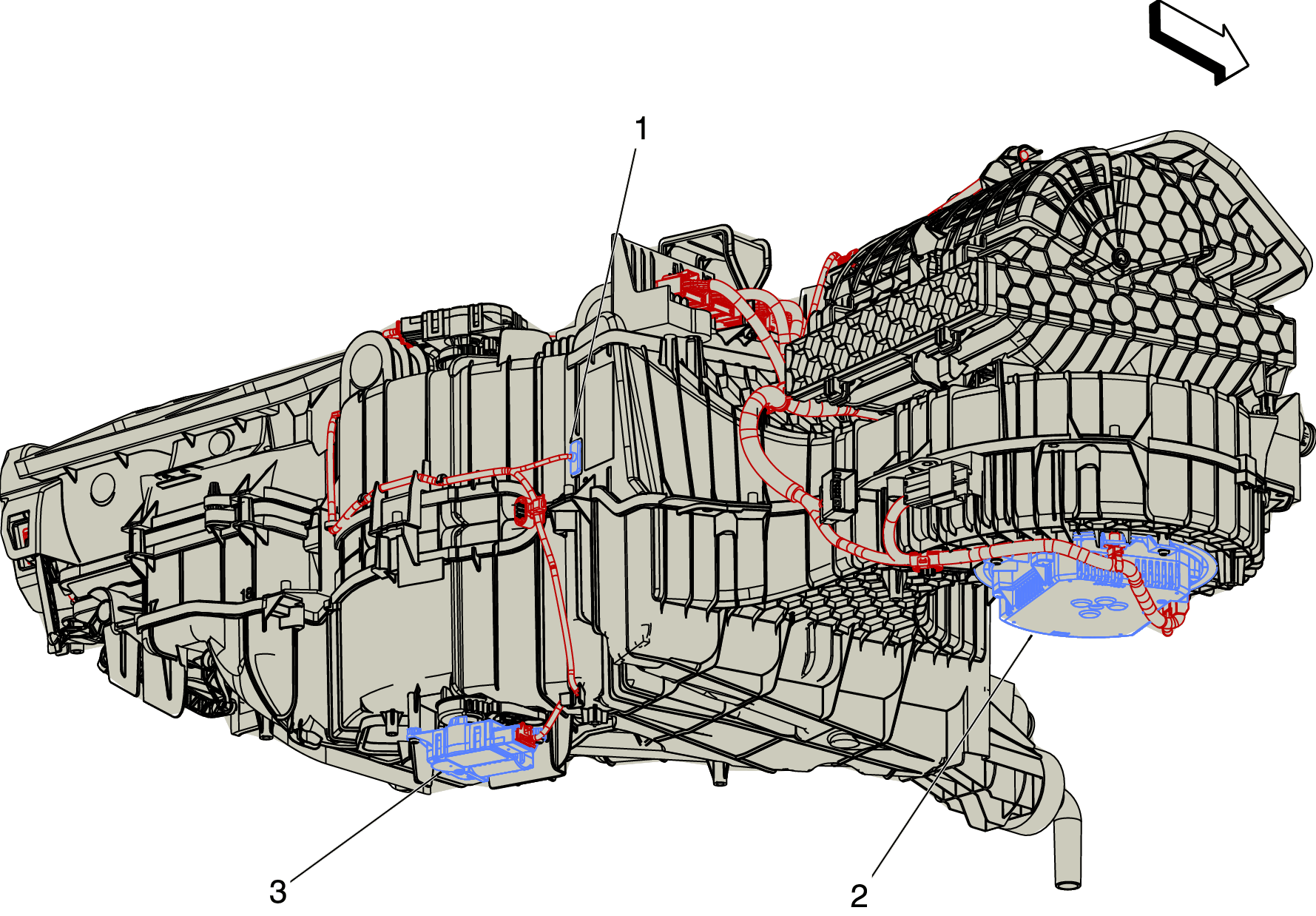

Fig 1: Back of HVAC Assembly Components
GM4702098Courtesy of GENERAL MOTORS COMPANY
