Module Power, Ground, Serial Data, Instrument Panel Switch, and Actuator (TB5)

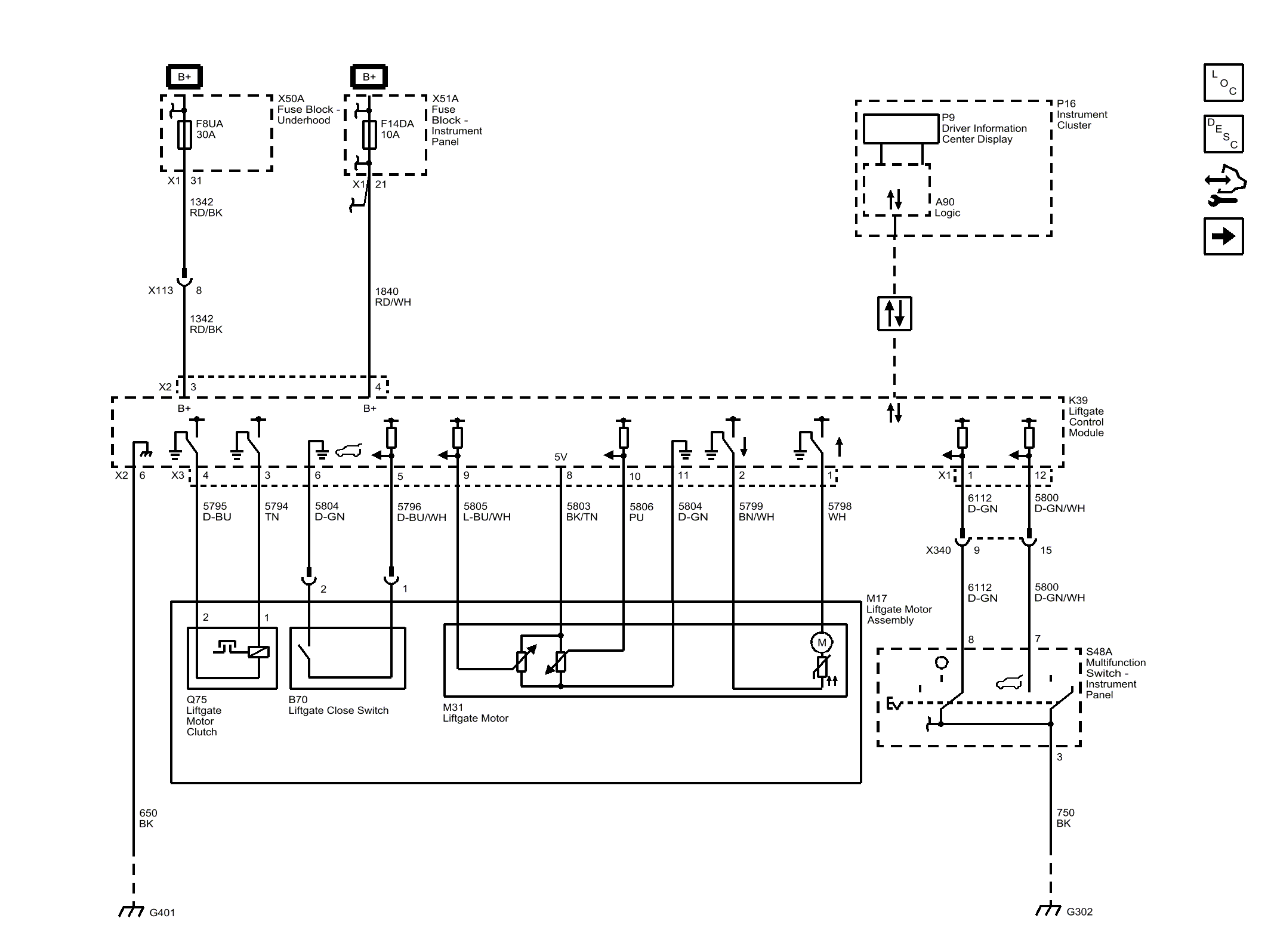

Fig 1: Module Power, Ground, Serial Data, Instrument Panel Switch, and Actuator (TB5)
GM4405725Courtesy of GENERAL MOTORS COMPANY
