Passenger Seat Adjuster Switch Replacement

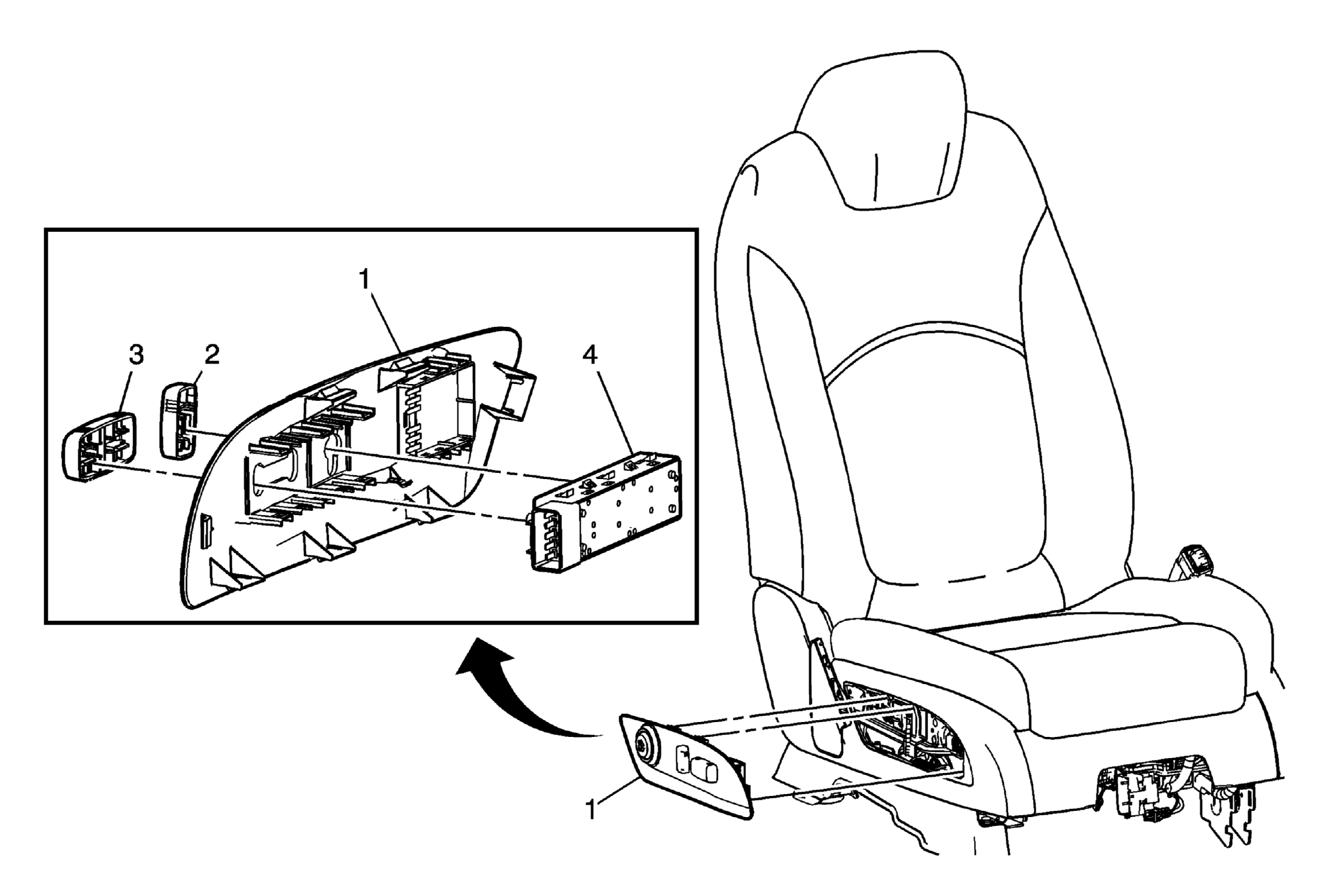

Fig 1: Passenger Seat Adjuster Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Passenger Seat Adjuster Switch Mounting Plate Procedure Using a non-metallic flat-bladed tool, release the retainer tabs starting at the rear edge and working forward while pulling outward on the mounting plate. Disconnect the electrical connectors from the switch assemblies.
2	Passenger Seat Recliner Knob Procedure Use a flat-bladed tool to release the knob from the mounting plate.
3	Passenger Seat Adjuster Knob Procedure Use a flat-bladed tool to release the knob from the mounting plate.
4	Passenger Seat Adjuster and Recliner Switch Procedure Use a flat-bladed tool to release the switch from the mounting plate.
