Electronic Compass Module Replacement

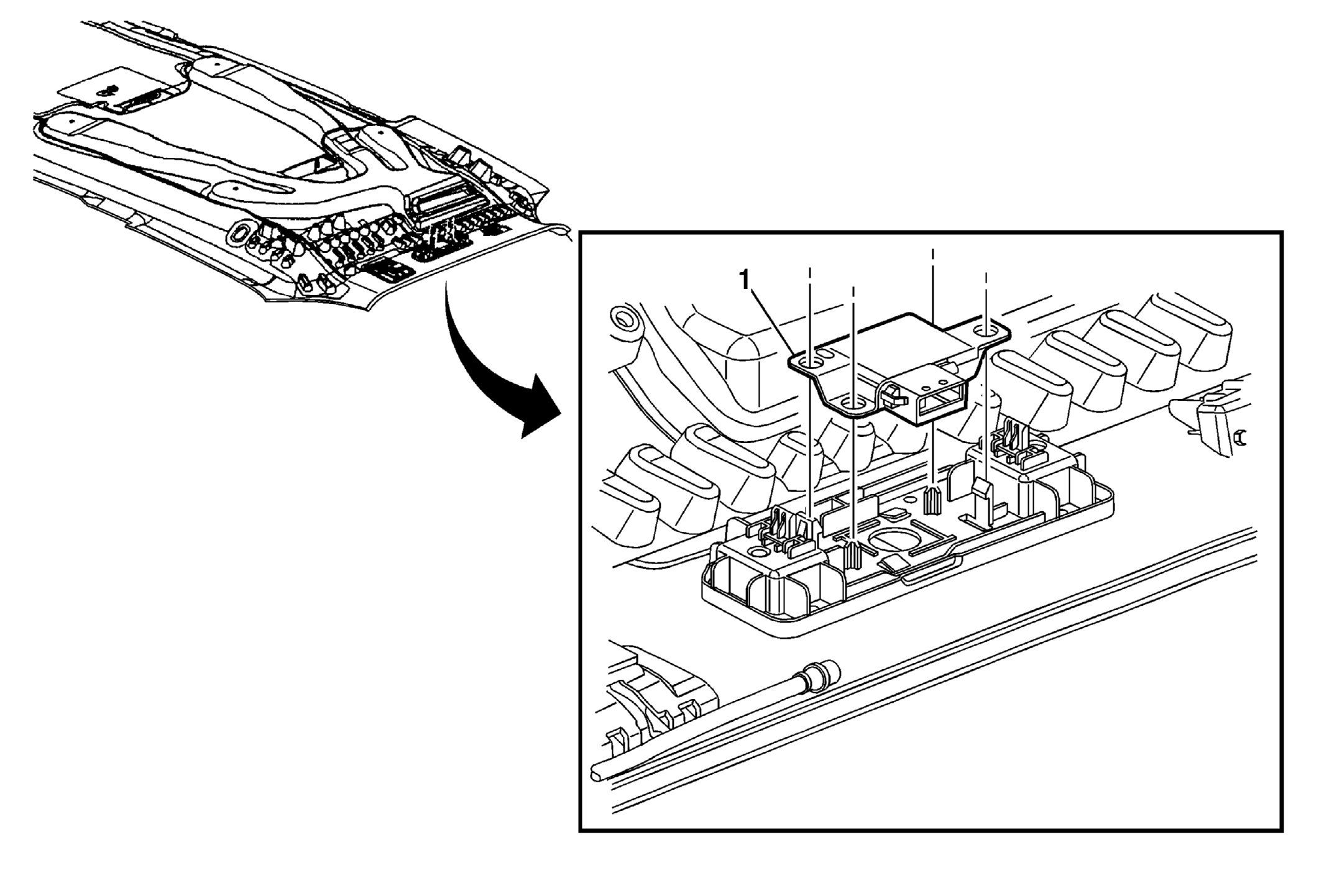

Fig 1: Electronic Compass Module
GM2133361Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Lower the rear of the headliner to gain access to the module. Refer to Headlining Trim Panel Replacement .
1 Electronic Compass Module

Procedure

  1. Disconnect the electrical connectors.
  2. For programming and set up information, refer to Control Module References .
  3. Unsnap the electronic compass module from the rear of the panel.
