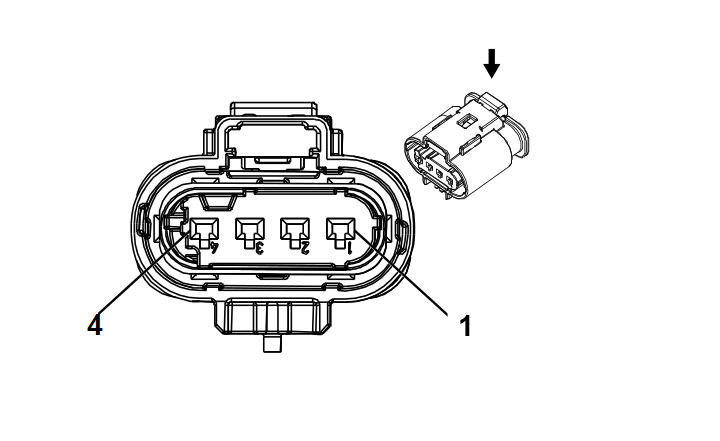

B47B Fuel Rail Pressure Sensor
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Fuel Injector - Odd
- OEM Connector: 13503575
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.2 MLK Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-16 (L-GN) |
J-38125-21 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/RD |
2917 |
Fuel Rail Pressure Sensor (5) Volt Reference |
I |
- |
| 2 |
0.5 |
BN/YE |
2161 |
Fuel Rail Pressure Sensor #2 Signal |
I |
- |
| 3 |
0.5 |
BK/L-GN |
2919 |
Fuel Rail Pressure Sensor Low Reference |
I |
- |
| 4 |
0.5 |
L-BU/WH |
2918 |
Fuel Rail Pressure Sensor Signal |
I |
- |
