Steering Angle Sensor Replacement

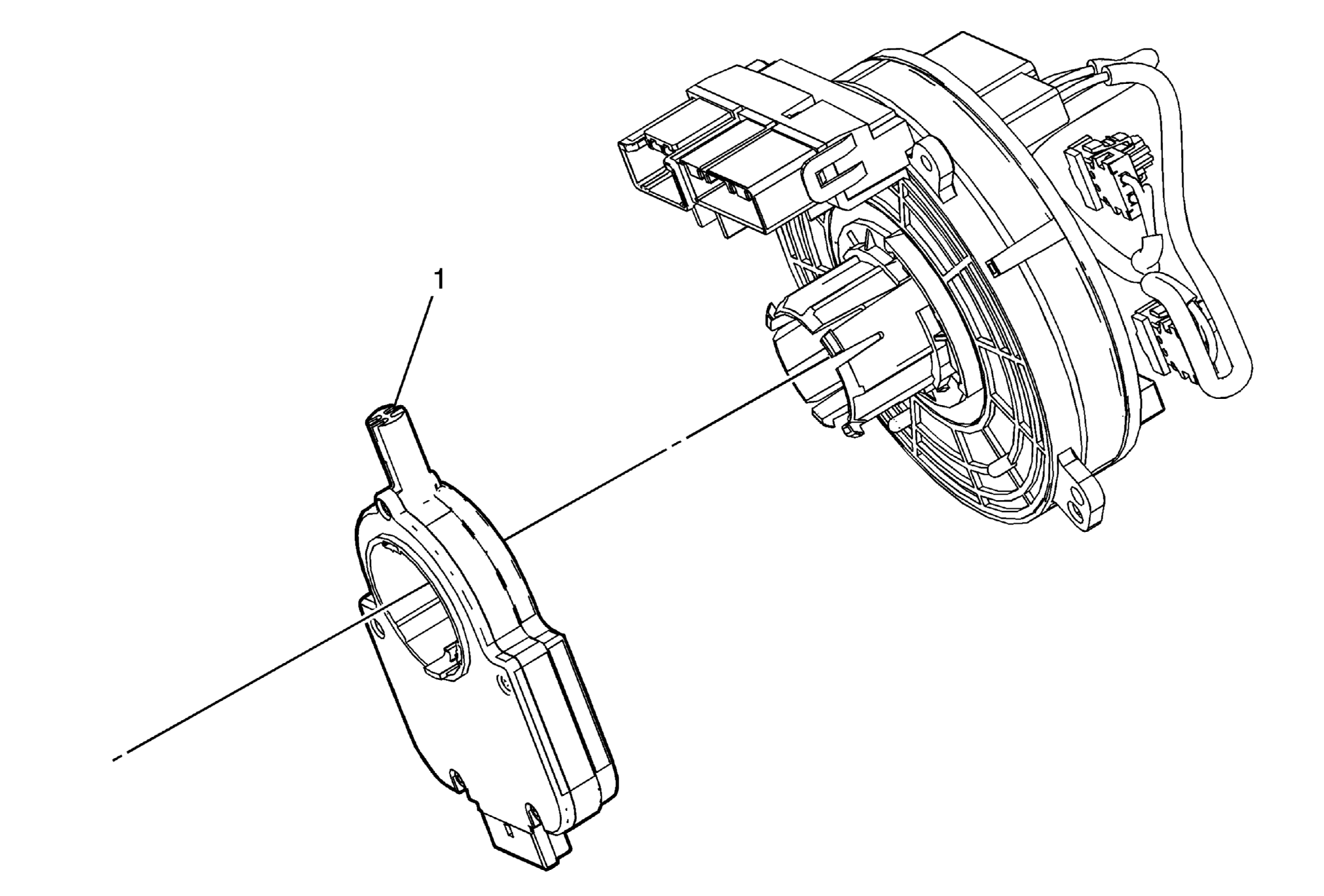

Fig 1: Steering Angle Sensor
GM1919751Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the inflatable restraint steering wheel module coil. Refer to Steering Wheel Airbag Coil Replacement .
1 Steering Angle Sensor

Procedure

  1. Disconnect any electrical connectors as needed.
  2. Squeeze the plastic retaining tabs on the supplemental inflatable restraint steering wheel module coil to release and disengage the steering angle sensor.
  3. After installation, center the steering angle sensor. Refer to Steering Wheel Angle Sensor Centering .
