Turn Signal Multifunction Switch Replacement

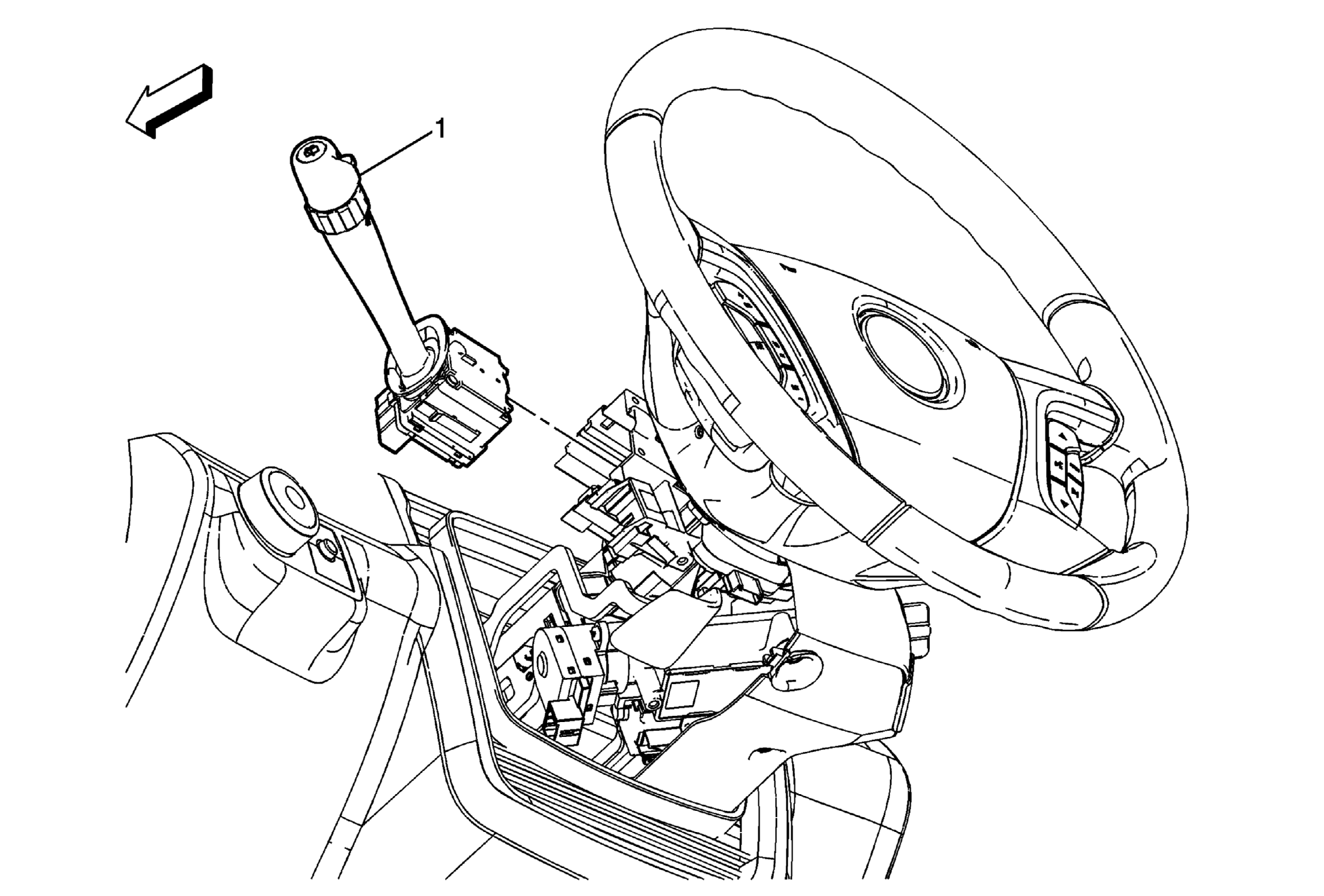

Fig 1: Identifying Turn Signal Multifunction Switch
GM1857103Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
  2. Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement (N37) Steering Column Lower Trim Cover Replacement (N38) .
1 Turn Signal Multifunction Switch

Procedure

  1. Disconnect any electrical connectors as needed.
  2. Release the plastic retaining tabs.
