Installation Procedure

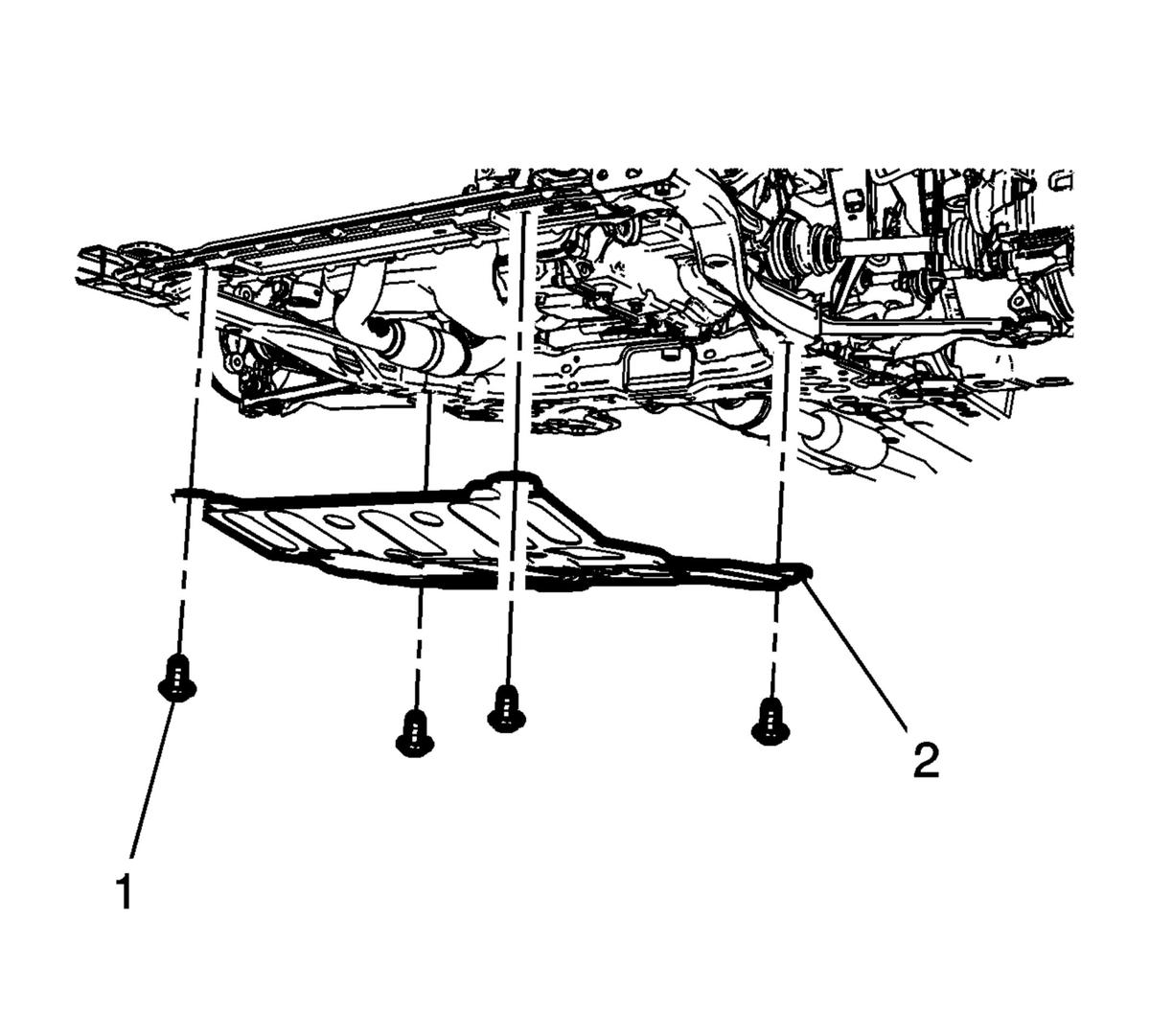

    Fig 1: Front Suspension Skid Plate & Bolts
    GM2508614Courtesy of GENERAL MOTORS COMPANY
  1. Position the front suspension frame transmission protector (2) on the frame.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the front suspension frame transmission protector mounting bolts (2) and tighten to 22 N.m (16 lb ft).
  3. Lower the vehicle.
