Lane Departure Warning with Forward Collision Alert (UFL)

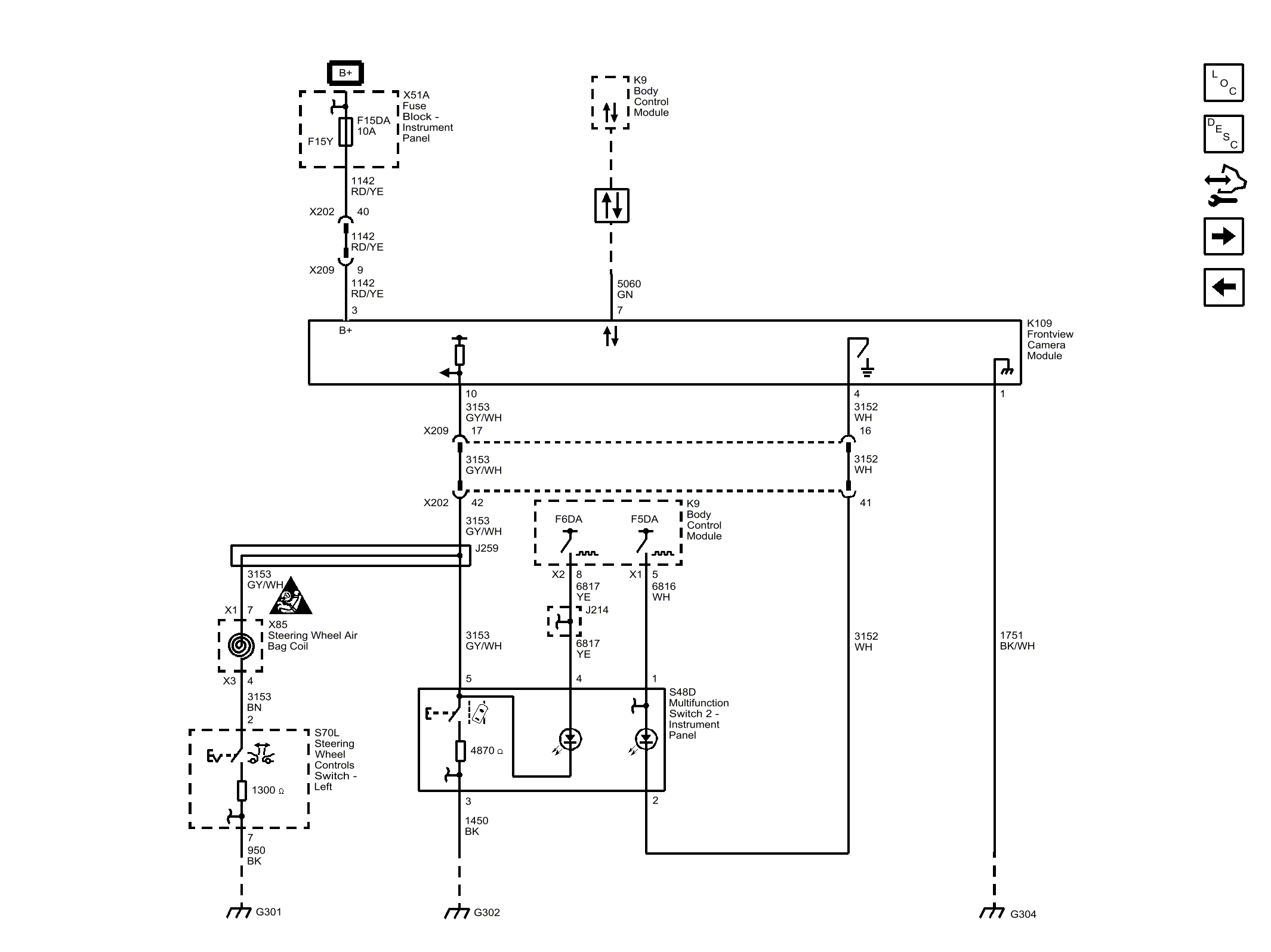

Fig 1: Lane Departure Warning with Forward Collision Alert (UFL)
GM4477171Courtesy of GENERAL MOTORS COMPANY
