Active Safety Control Module Replacement

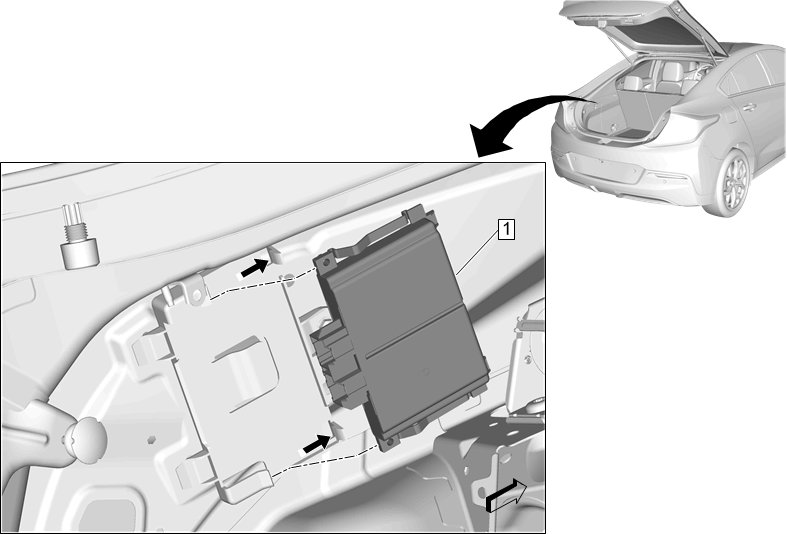

Fig 1: Active Safety Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Quarter Lower Rear Trim Panel (Left Side). Refer to Quarter Lower Rear Trim Panel Replacement (Left Side)
1	Active Safety Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Quarter Lower Rear Trim Panel (Left Side). Refer to Quarter Lower Rear Trim Panel Replacement (Left Side)

Active Safety Control Module

Procedure

Disconnect the electrical connectors.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
