Right Front of Vehicle Components

Right Front of Vehicle Components

Items
1. P12 Horn P12 Horn
2. B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch
3. G24 Windshield Washer Pump G24 Windshield Washer Pump

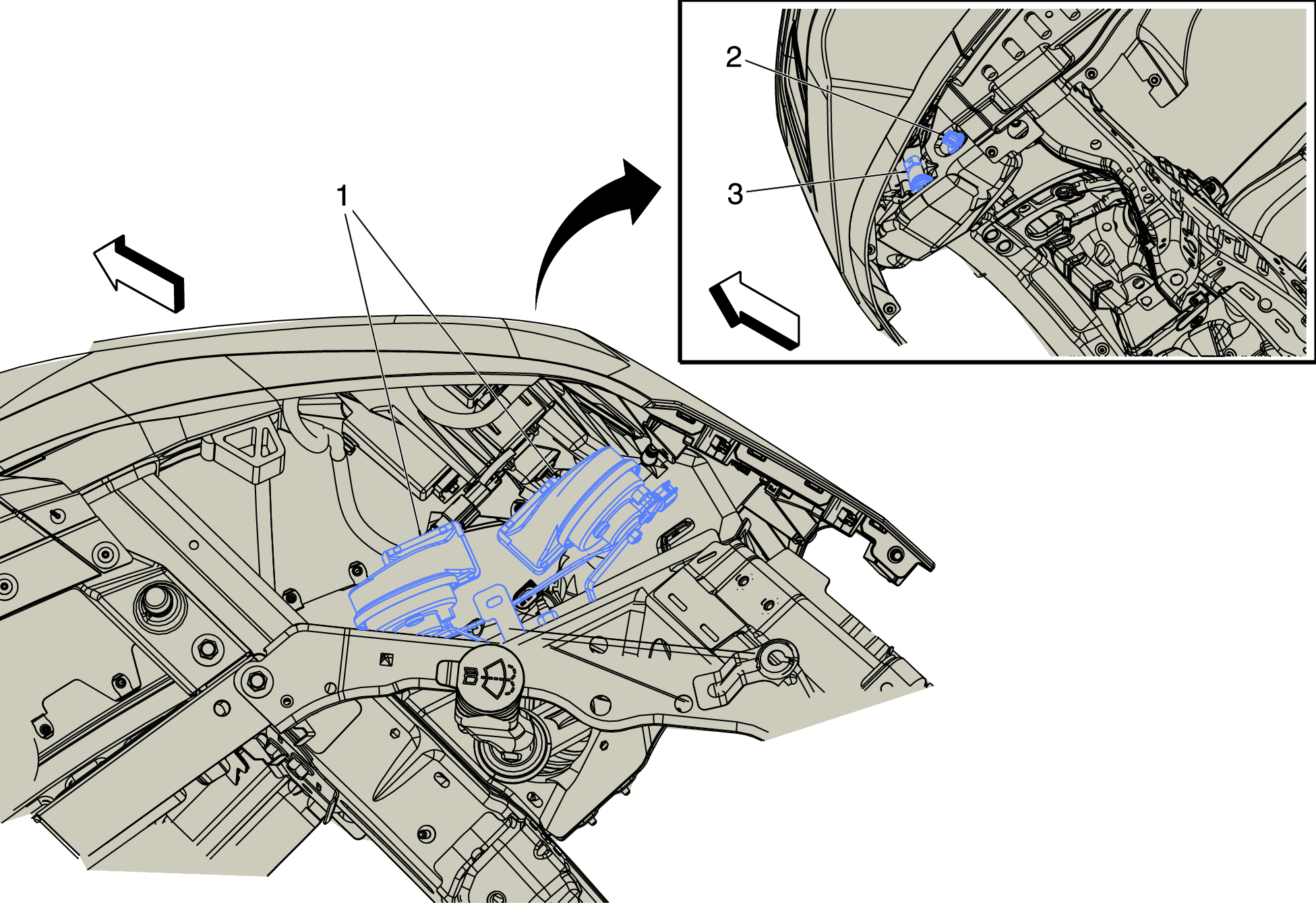

Fig 1: Right Front of Vehicle Components
GM4169519Courtesy of GENERAL MOTORS COMPANY
