Forward Range Radar Sensor Replacement

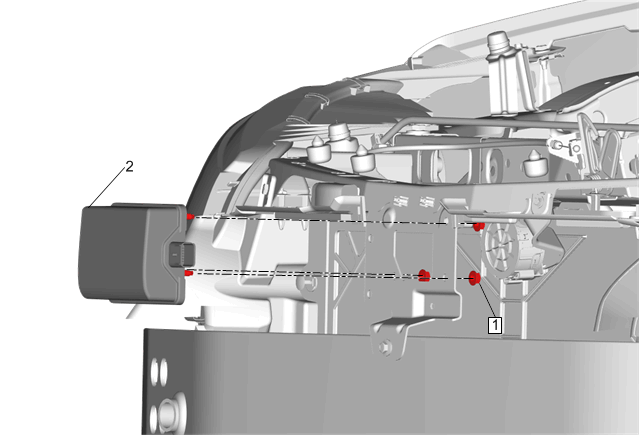

Fig 1: Forward Range Radar Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Bumper Fascia. Refer to Front Bumper Fascia Removal and Installation
1	Forward Range Radar Sensor Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Forward Range Radar Sensor Procedure Disconnect the electrical connector. Refer to Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Remove Front Bumper Fascia. Refer to Front Bumper Fascia Removal and Installation

Forward Range Radar Sensor Fastener (Qty: 3)

CAUTION:

Tighten
6 N.m (53 lb in)

Forward Range Radar Sensor

Procedure

Disconnect the electrical connector.
Refer to Control Module References for programming and setup information, if required.
