Front Park Assist (UFQ)

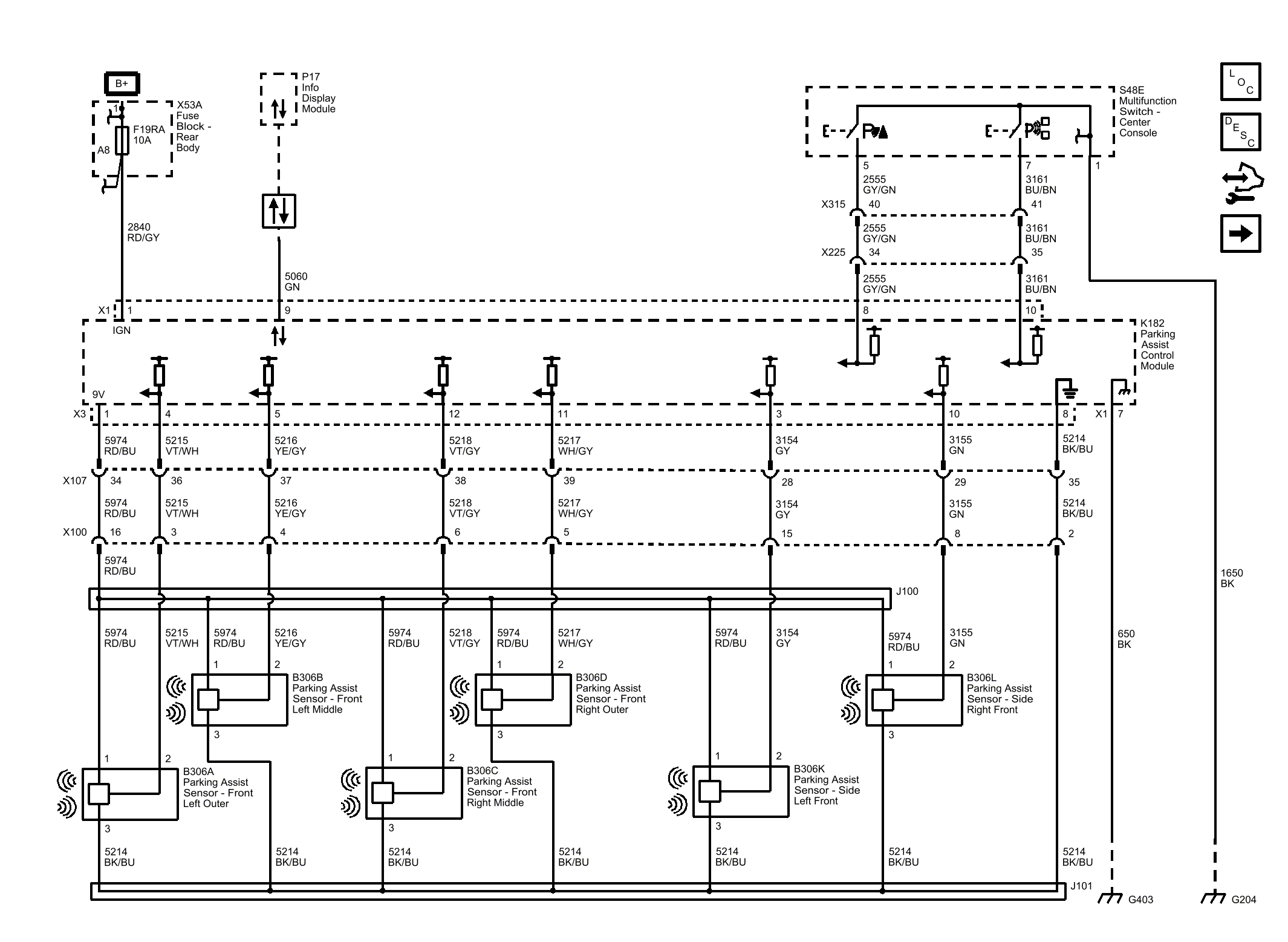

Fig 1: Front Park Assist (UFQ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
