Radio Control Switch Replacement - Steering Wheel (Right Side Front)

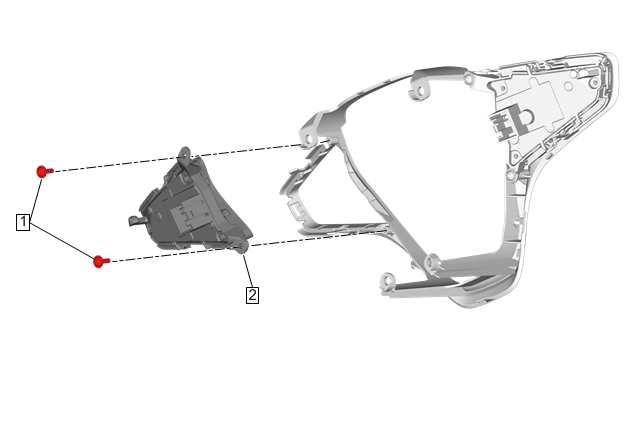

Fig 1: Radio Control Switch - Steering Wheel (Right Side Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Steering Wheel Spoke Cover. Refer to Steering Wheel Spoke Cover Replacement
1	Radio Control Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Radio Control Switch - Right Side Front Procedure  Remove the radio control switch from the steering wheel spoke cover.
