Battery State of Charge
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Battery State of Charge

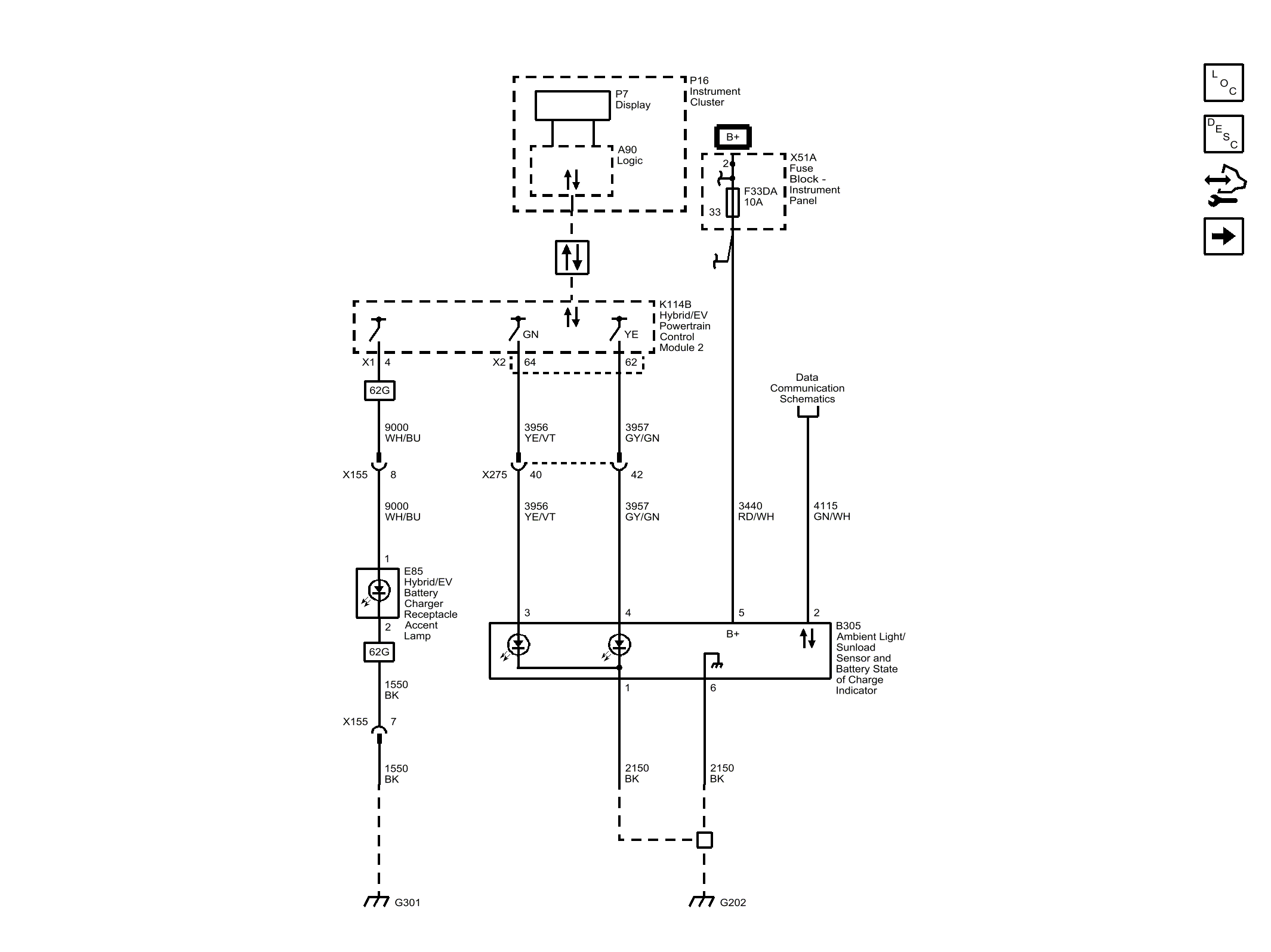

Fig 1: Battery State of Charge
Courtesy of GENERAL MOTORS COMPANY
