Engine Compartment Components - Front (2 of 4)

Engine Compartment Components - Front (2 of 4)

Items
1. G10L Cooling Fan Motor - Left G10L Cooling Fan Motor - Left
2. G37 Hybrid/EV Battery Pack Coolant Pump G37 Hybrid/EV Battery Pack Coolant Pump
3. B202 Hybrid/EV Electronics Coolant Temperature Sensor B202 Hybrid/EV Electronics Coolant Temperature Sensor
4. B203 Radiator Coolant Temperature Sensor B203 Engine Coolant Radiator Temperature Sensor
5. G10R Cooling Fan Motor - Right G10R Cooling Fan Motor - Right

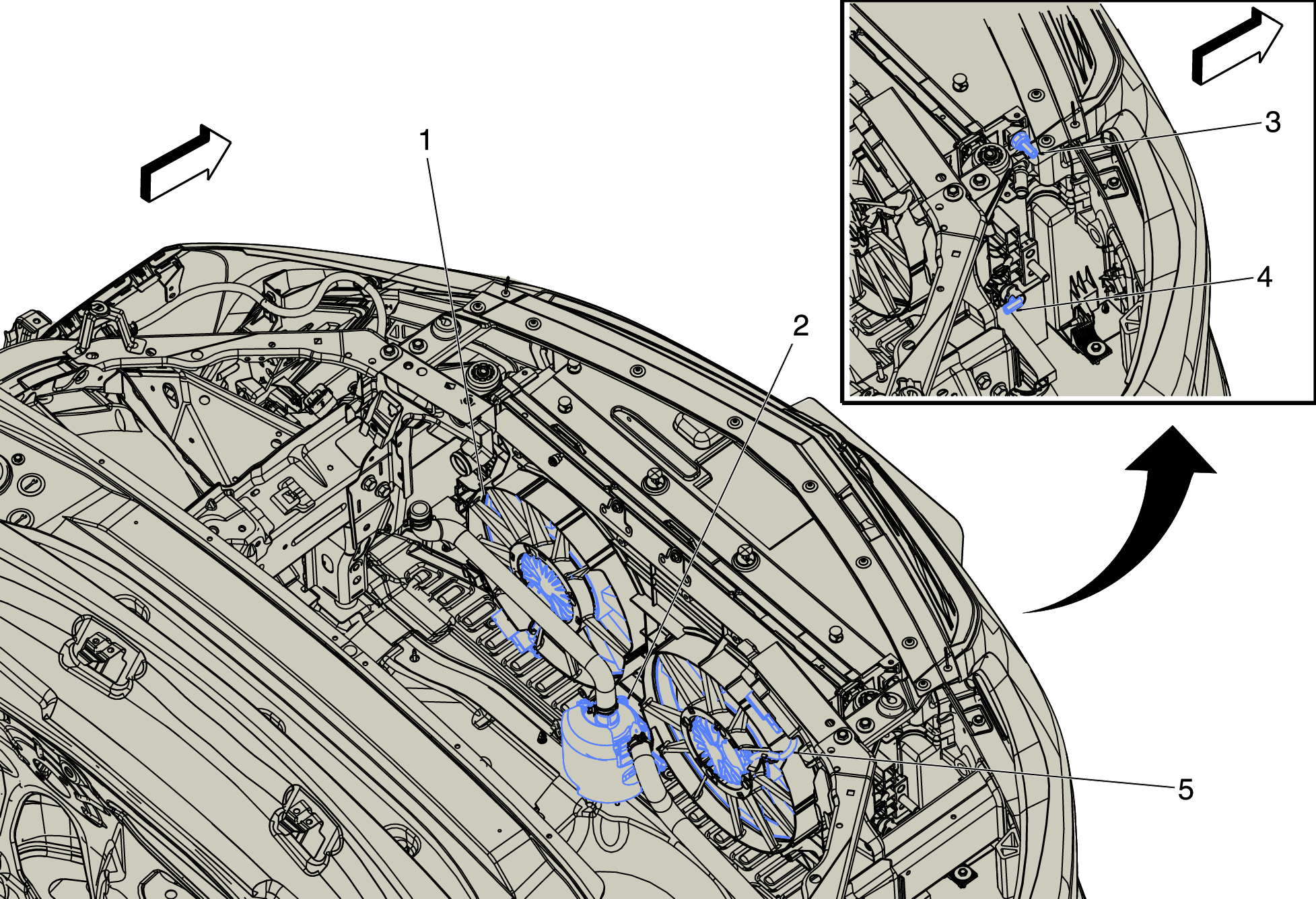

Fig 1: Engine Compartment Components - Front (2 of 4)
GM4169530Courtesy of GENERAL MOTORS COMPANY
