Engine Compartment Components - Front (3 of 4)

Engine Compartment Components - Front (3 of 4)

Items
1. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3
2. G35 Hybrid/EV Electronics Coolant Pump G35 Hybrid/EV Electronics Coolant Pump
3. B55 Hood Ajar Switch B55 Engine Hood Switch
4. P48 Pedestrian Alert Sound Speaker P48 Pedestrian Alert Sound Speaker

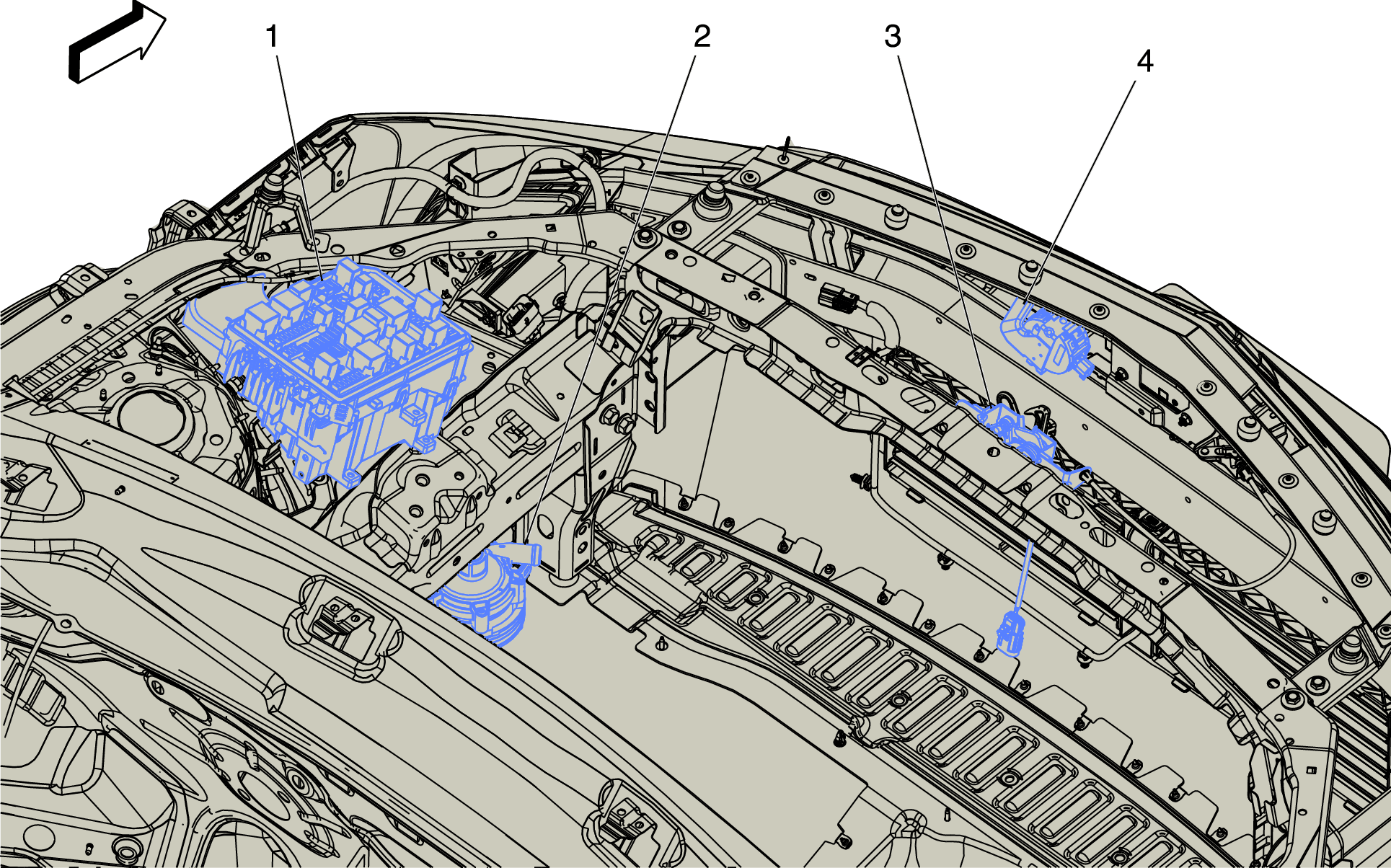

Fig 1: Engine Compartment Components - Front (3 of 4)
GM4169532Courtesy of GENERAL MOTORS COMPANY
