Left Front of Vehicle Components (1 of 2)

Left Front of Vehicle Components (1 of 2)

Items
1. K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3

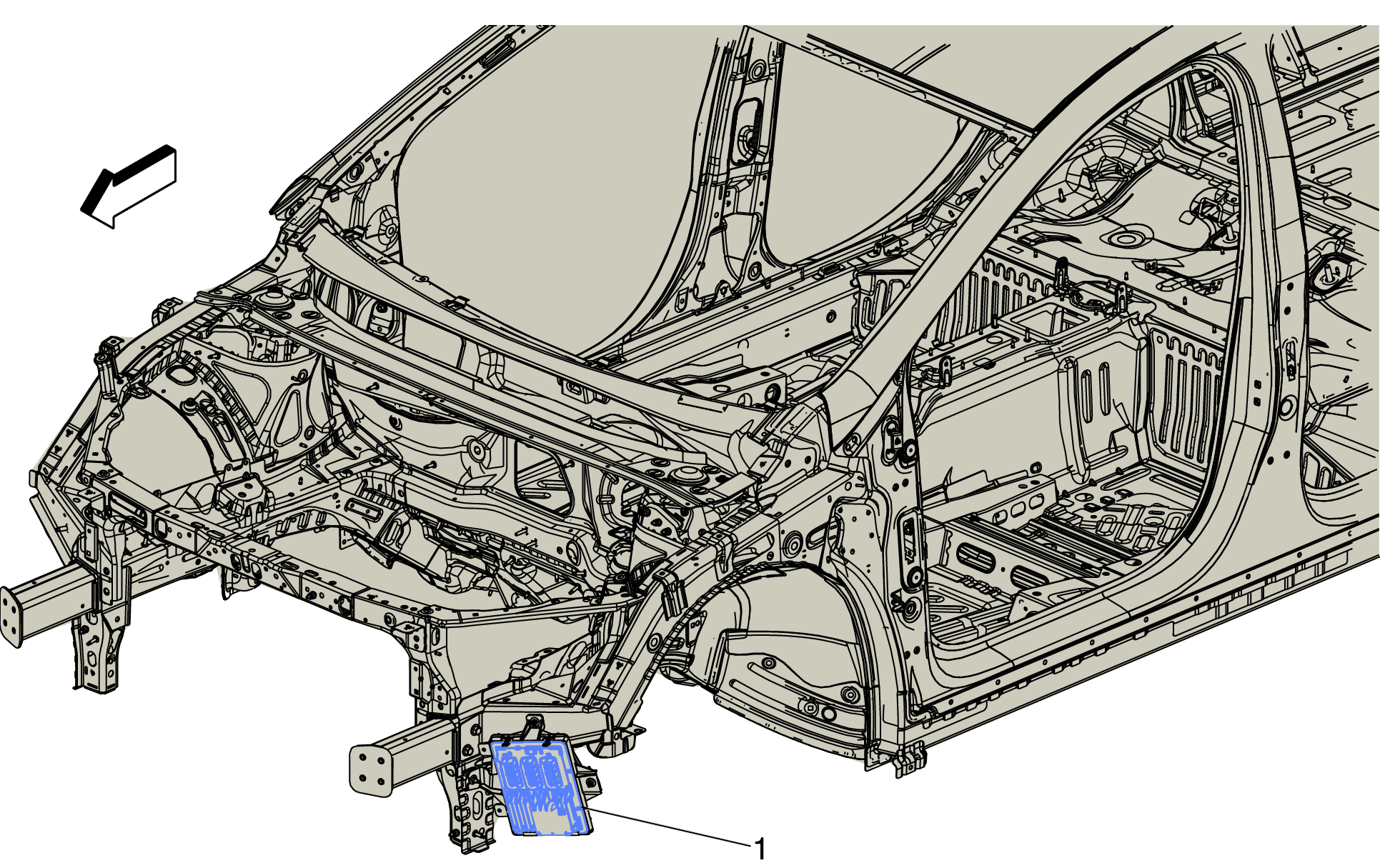

Fig 1: Left Front of Vehicle Components (1 of 2)
GM4169504Courtesy of GENERAL MOTORS COMPANY
