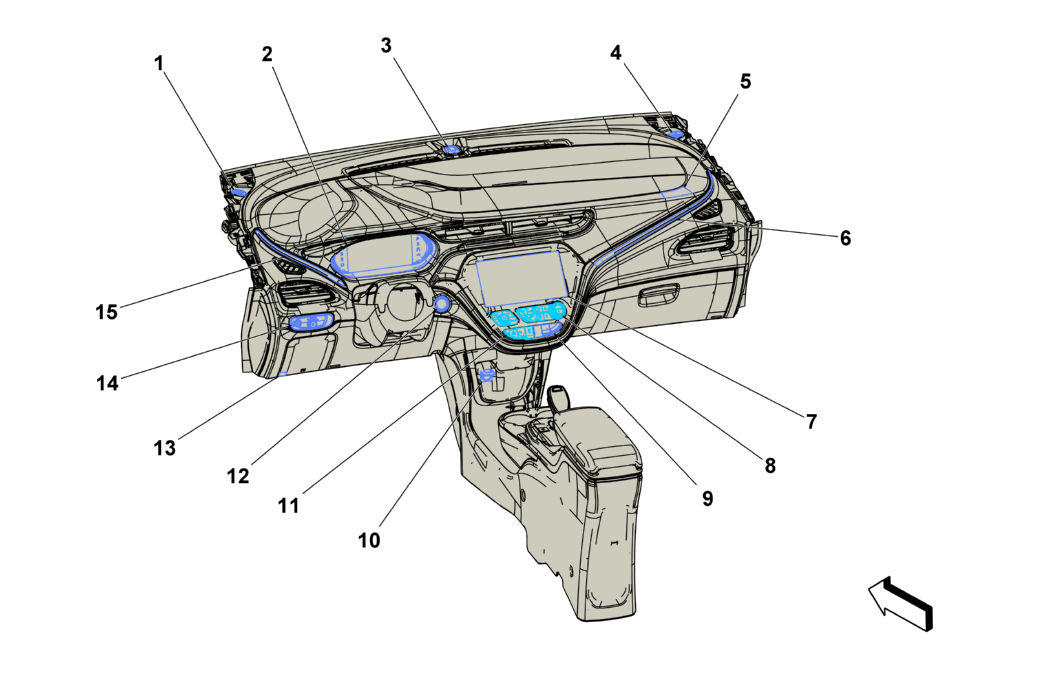

Front of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY

Items
1. P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter (UQA)
2. P16 Instrument Cluster P16 Instrument Cluster
3. B305 Ambient Light/Sunload Sensor and Battery State of Charge Indicator B305 Ambient Light/Sunload Sensor and Battery State of Charge Indicator
4. P19AH Speaker - Right Front Door P19AH Speaker - Right Front Door (UQ3)P19AH Speaker - Right Front Door (UQA)
5. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
6. E1H Accent Lamp - Right Instrument Panel E1H Accent Lamp - Right Instrument Panel
7. A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X3 A11 Radio X4 A11 Radio X5 A11 Radio X6 A11 Radio X8
8. A20 Radio/HVAC Controls A20 Radio/HVAC Controls
9. S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel
10. X80 Accessory Power Receptacle X80 Accessory Power Receptacle
11. S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel
12. S83 Vehicle On/Off Switch S83 Vehicle On/Off Switch
13. X84 Data Link Connector X84 Data Link Connector
14. S30 Headlamp Switch S30 Headlamp Switch
15. E1G Accent Lamp - Left Instrument Panel E1G Accent Lamp - Left Instrument Panel
