P17 Info Display Module X4
 Courtesy of GENERAL MOTORS COMPANY
|

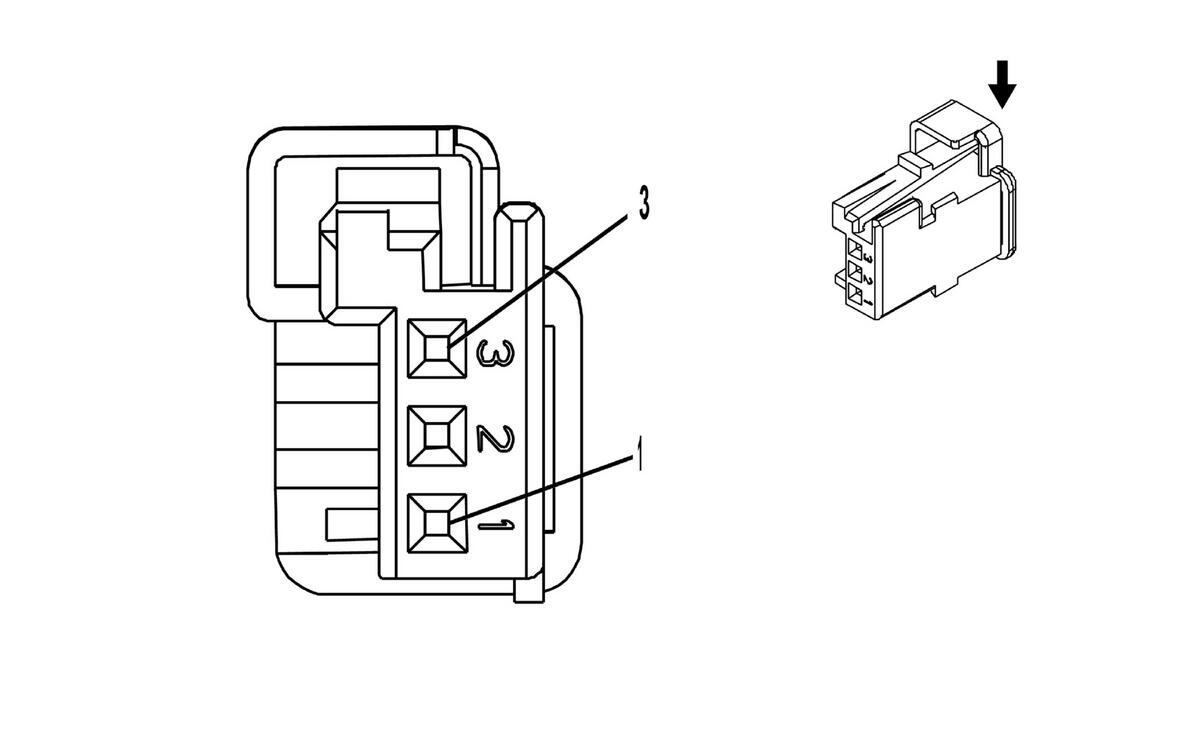

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13593005
- Service Connector: 19333316
- Description: 3-Way F 0.64 Micro-Quadlock Series (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH/YE |
7557 |
LED Ambient Lighting Control 1 |
I |
IO5/IO6-C70 |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BK |
1450 |
Ground |
I |
IO5/IO6-C70 |
