Exhaust System Insulator, Hanger, Bracket Replacement (LCV)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Lifting and Jacking the Vehicle |
|

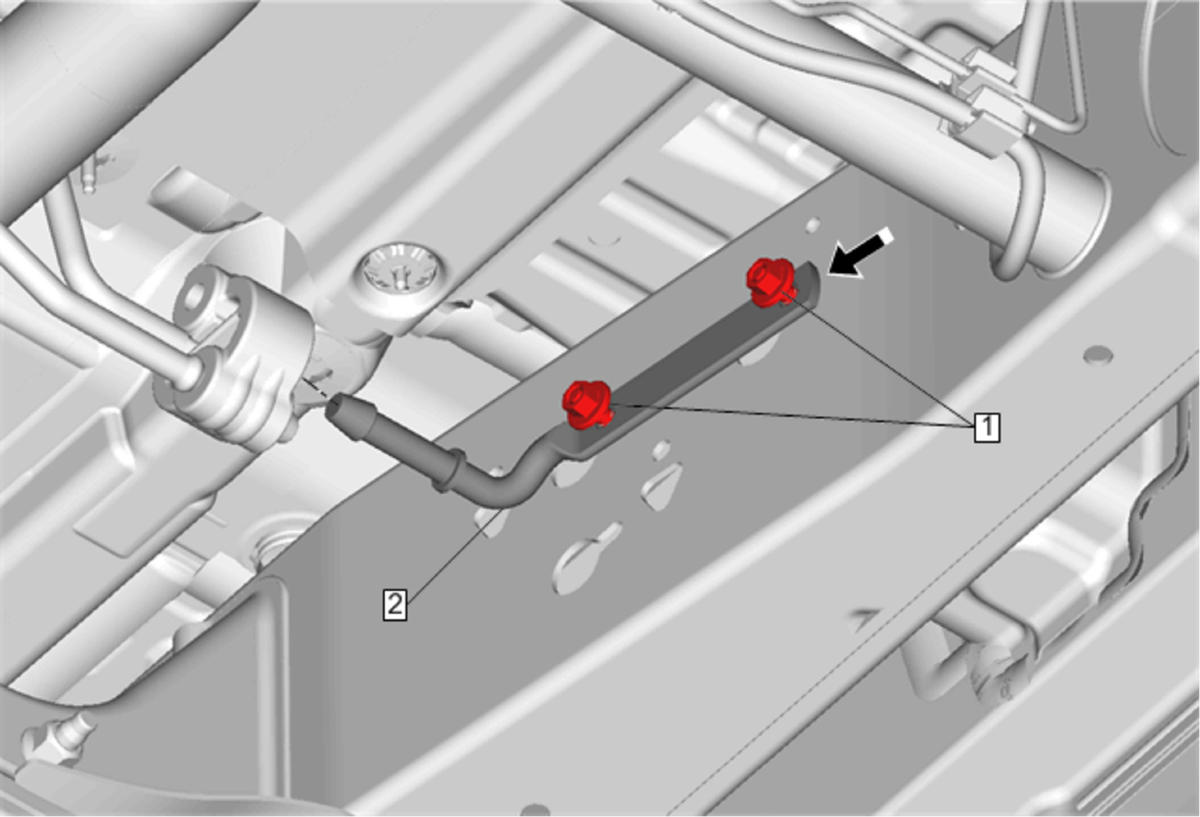

| 1 | Exhaust Hanger Nuts (Qty: 2)
CAUTION:
Refer to Fastener Caution . Procedure Counter hold the exhaust hanger bolts then loosen the exhaust hanger nuts (1). Tighten 22 N.m (16 lb ft) |
| 2 | Exhaust Hanger Procedure
NOTE:
Clean and lubricate the exhaust isolators for ease of installation. With nuts loose, move the exhaust hanger in the direction of the arrow to disengage and remove if from the frame. |
