Theft Deterrent Module Replacement

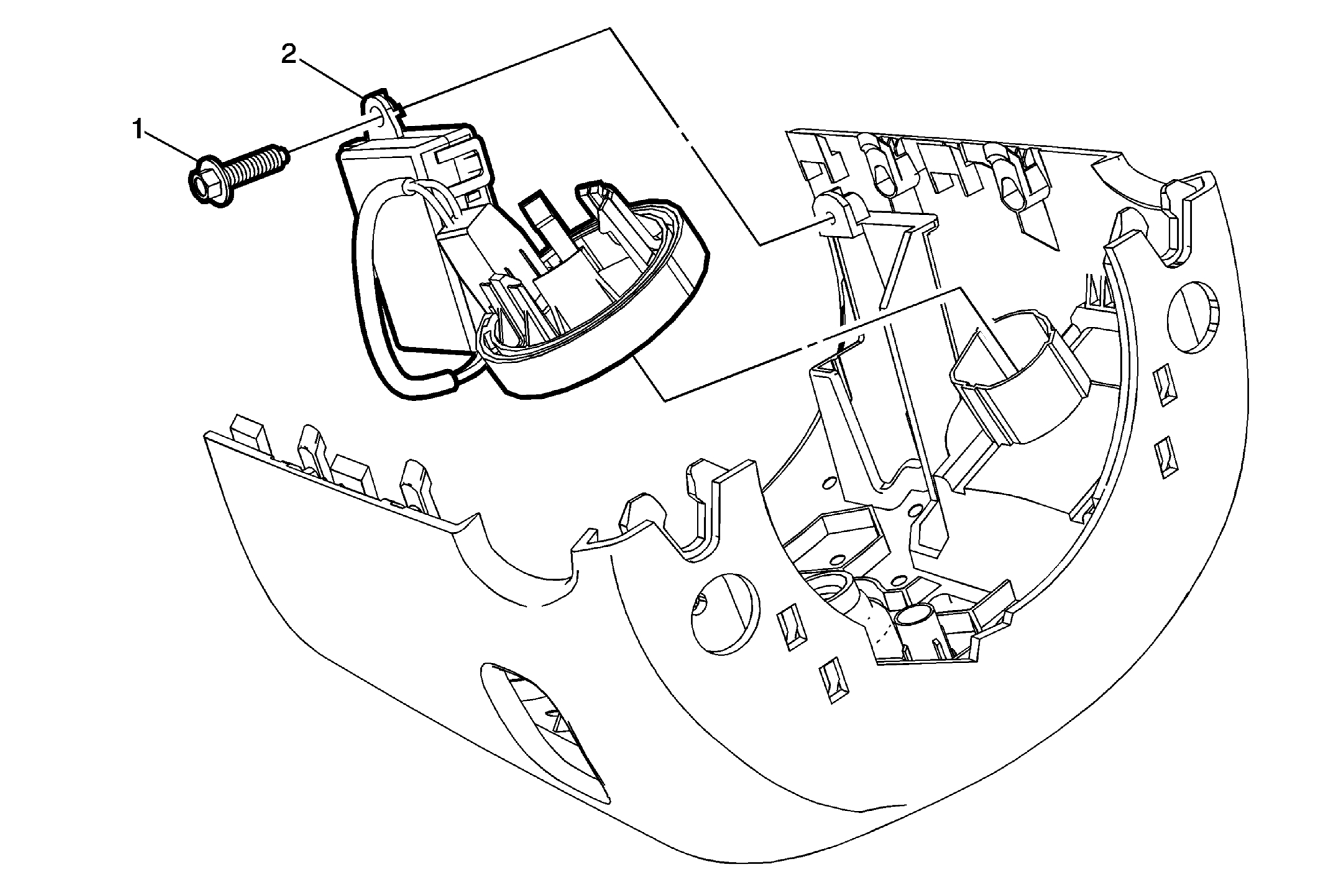

Callout	Component Name
Preliminary Procedure Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
1	Theft Deterrent Module Fastener CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .

Theft Deterrent Module Fastener

CAUTION:

Tighten
1.5 N.m (13 lb in)

Theft Deterrent Module

Procedure
