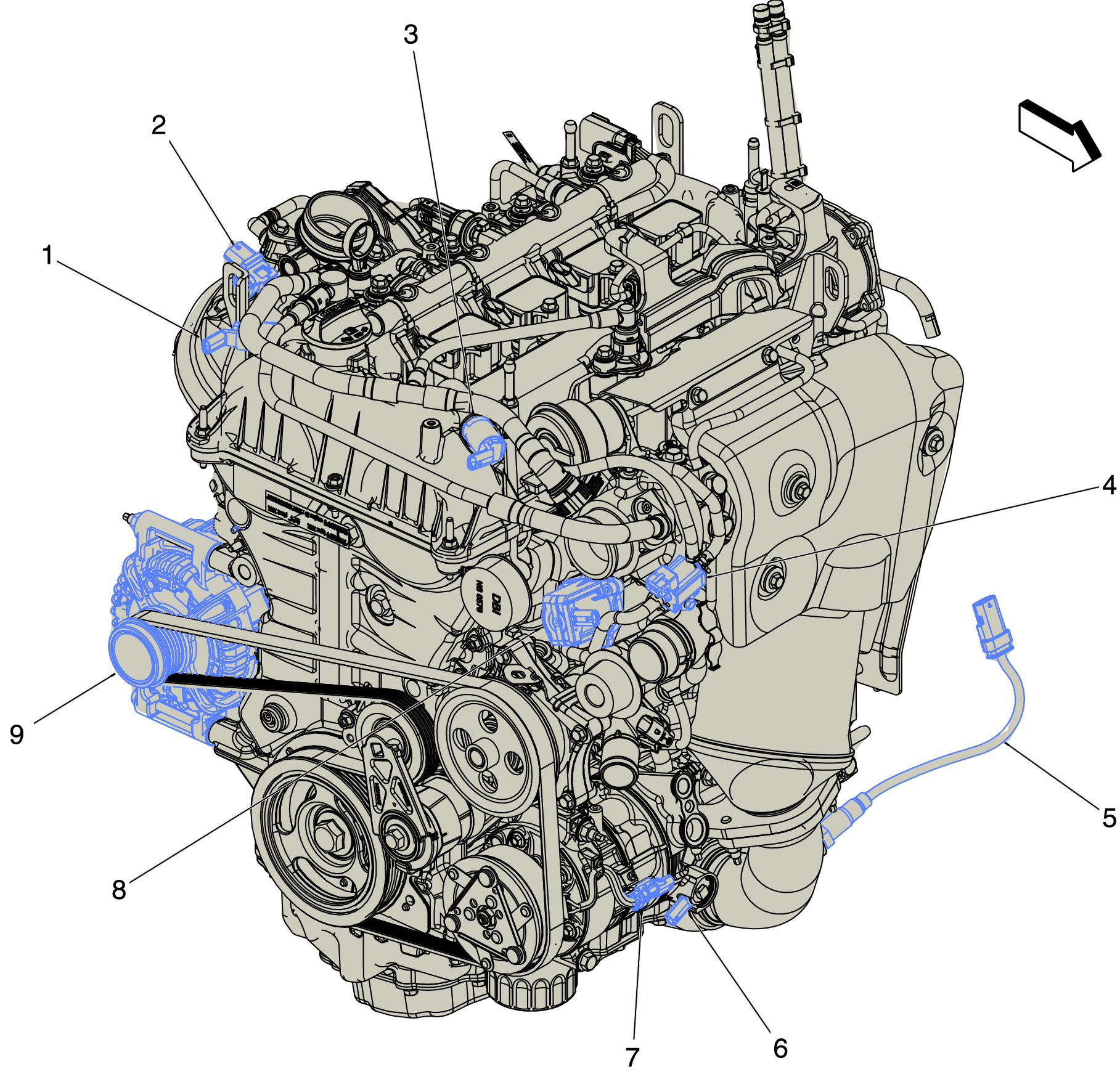

Right Front of Engine Components (LE2/LEX)
Right Front of Engine Components (LE2/LEX)
| Items |
|---|
| 1. Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LE2) |
| 2. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 3. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LE2) |
| 4. Q42 Turbocharger Wastegate Solenoid Valve Q42 Turbocharger Wastegate Solenoid Valve (LE2) |
| 5. B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 |
| 6. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch (LE2) |
| 7. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 8. Q40 Turbocharger Bypass Solenoid Valve Q40 Turbocharger Bypass Solenoid Valve (LE2) |
| 9. G13 Generator G13 Generator X1 (LE2)G13 Generator X2 |
