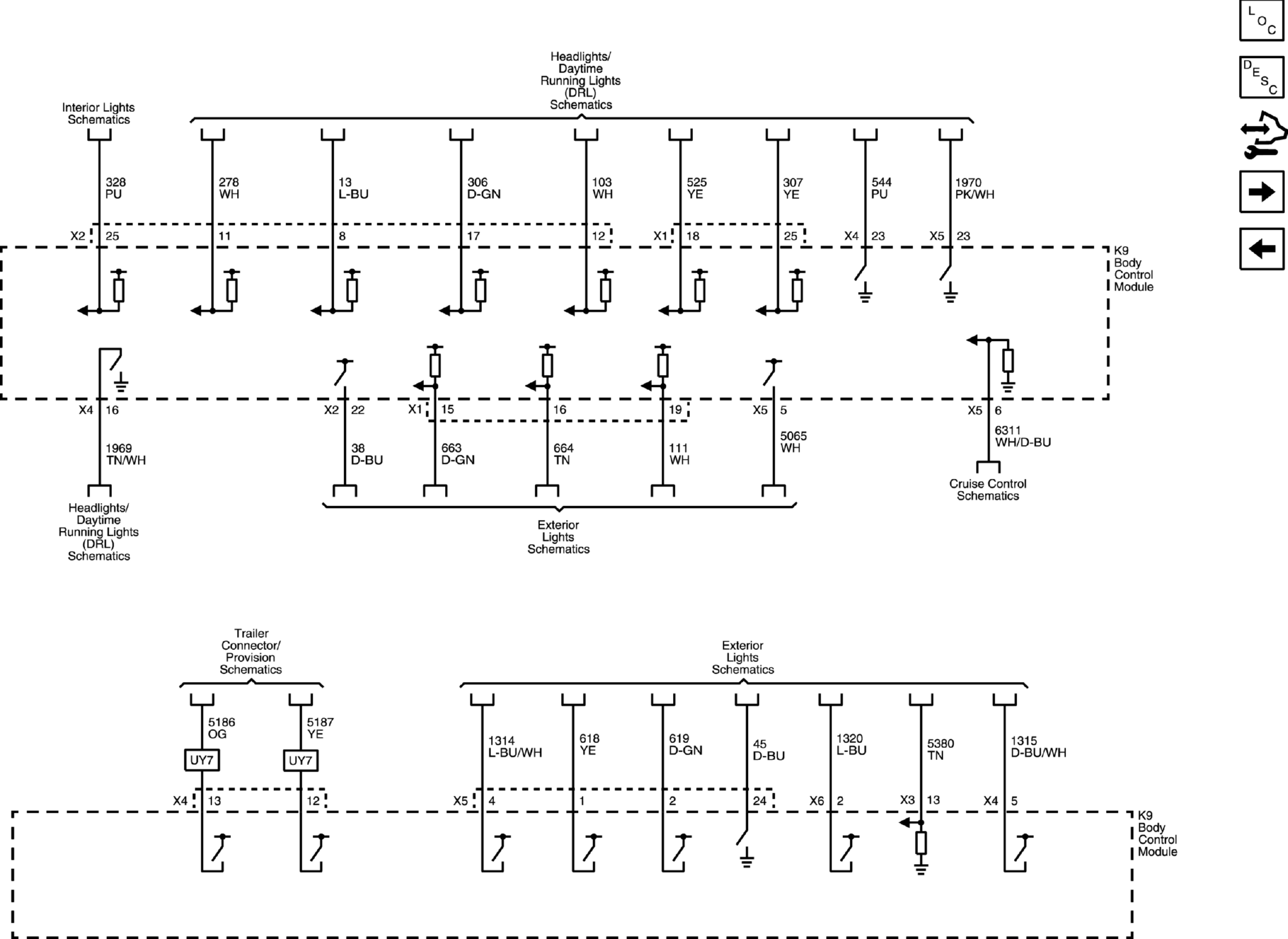

BCM Inputs and Outputs (2 of 3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
