Express 2500 LS, 6.0L Eng VIN G
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic and Routing Diagrams
>>
Data Communication Schematics
>>
Communications Enable
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

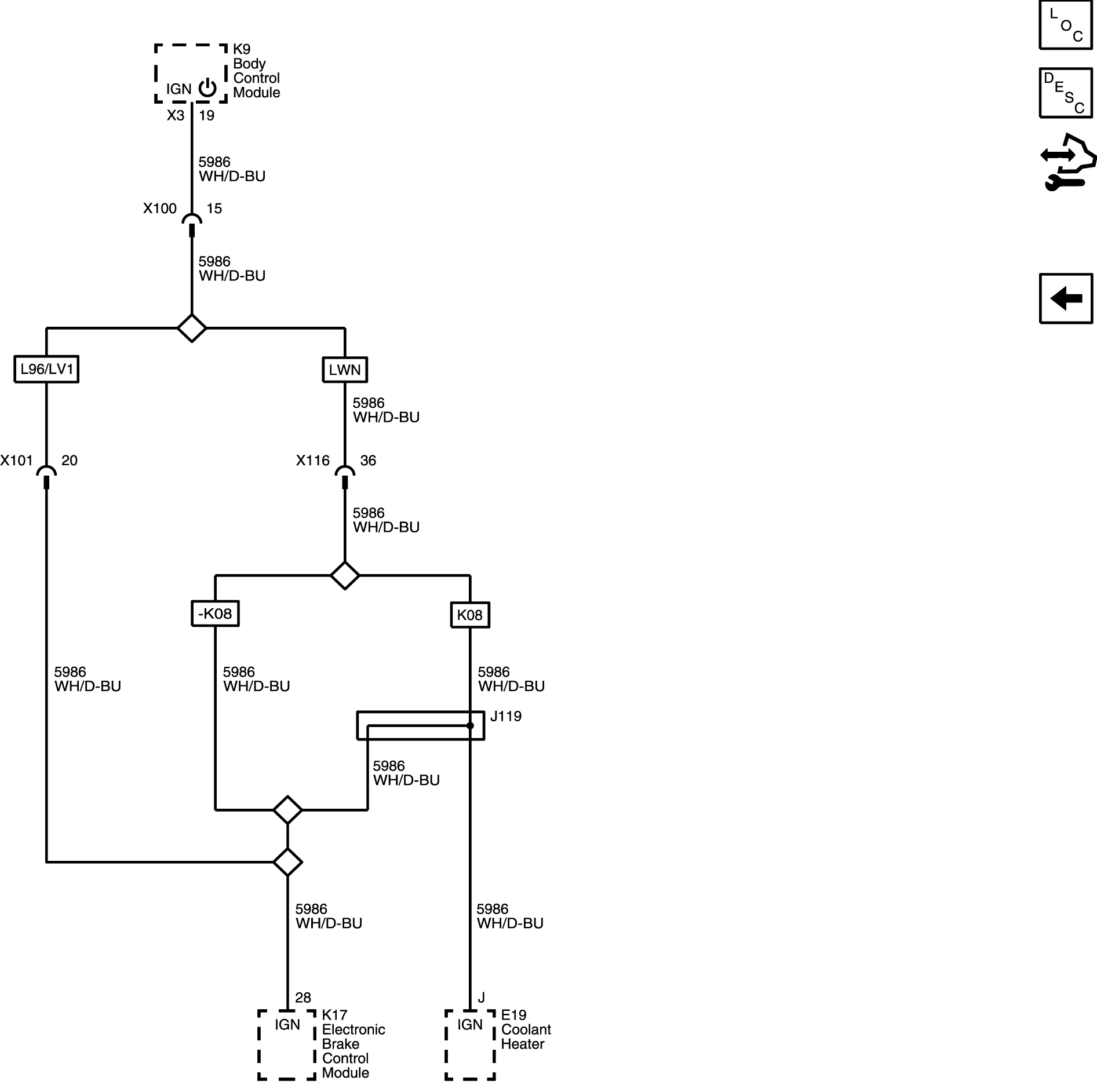

Communications Enable
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
