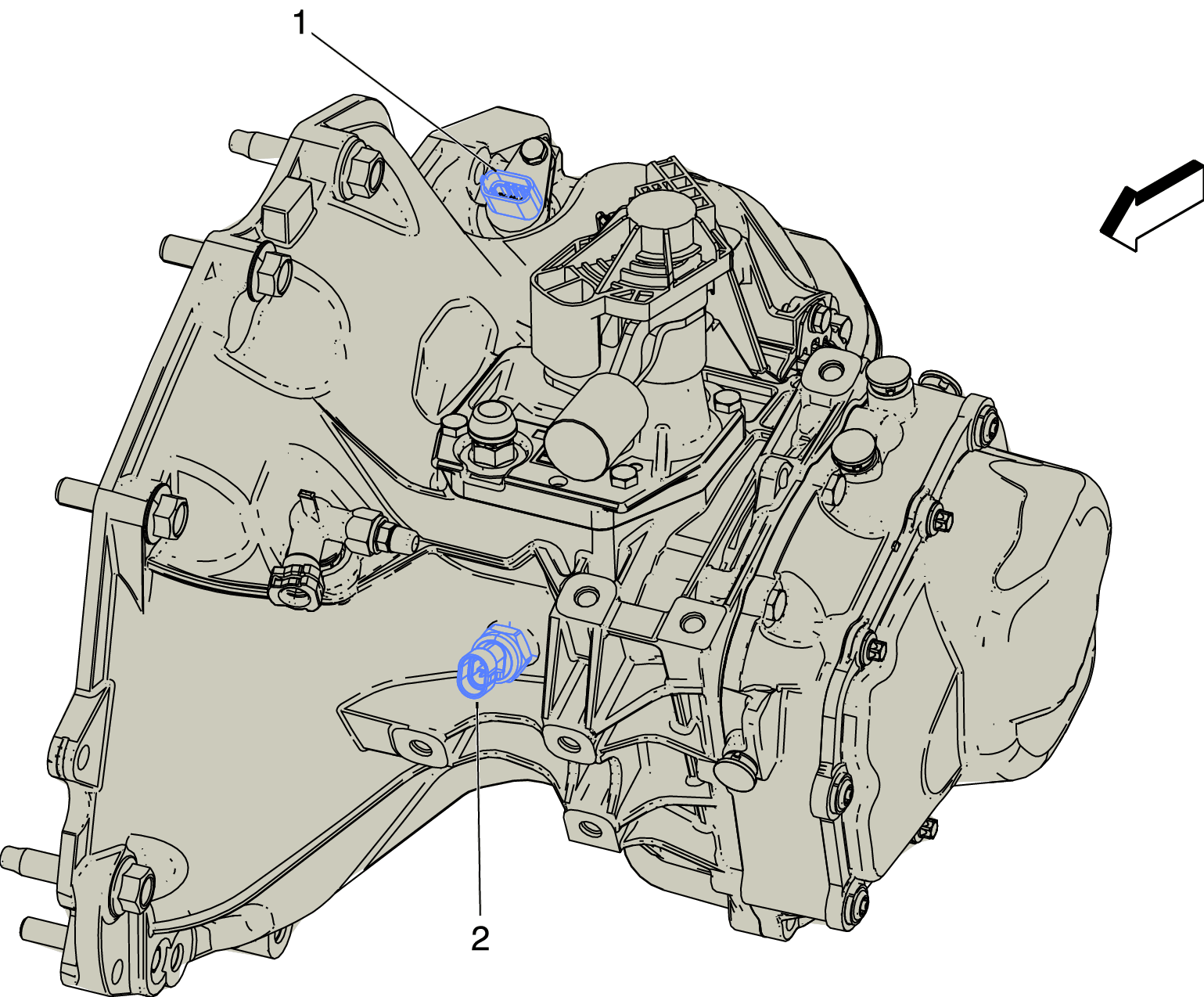

Manual Transmission Components - 5 Speed (M26)

GM2968600Courtesy of GENERAL MOTORS COMPANY
Manual Transmission Components - 5 Speed (M26)

Items
1. B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (LUV)B14A Transmission Output Shaft Speed Sensor (LUW/LWE)
2. B16 Backup Lamp Switch (MM3) B16 Backup Lamp Switch
