Infotainment Display and Radio Controls (IOB)
WARNING:
This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

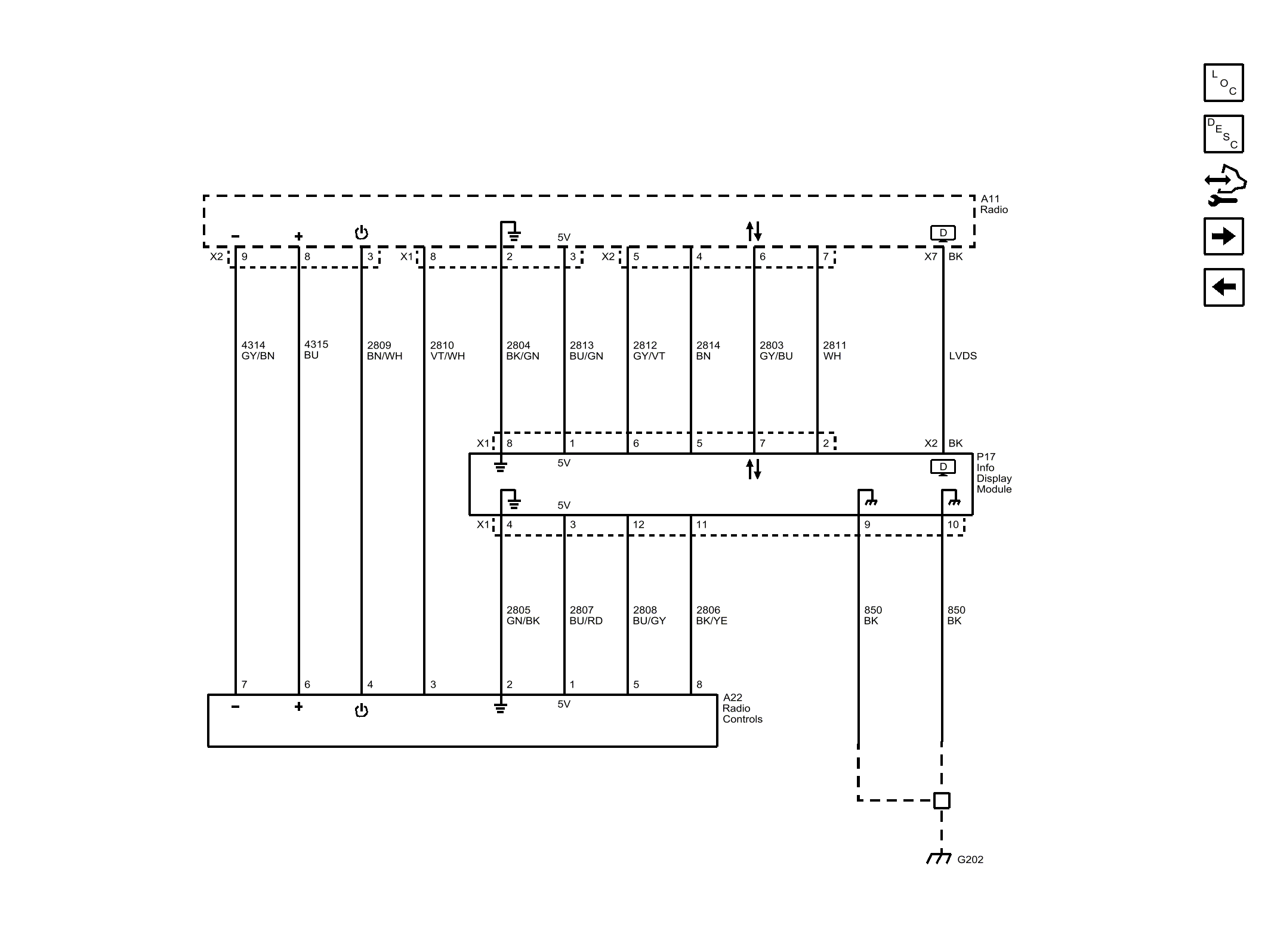

Fig 1: Infotainment Display and Radio Controls (IOB)
Courtesy of GENERAL MOTORS COMPANY
