Human Machine Interface Control Module Bypass Module Replacement (Chevrolet/GMC With DCK Or D07)

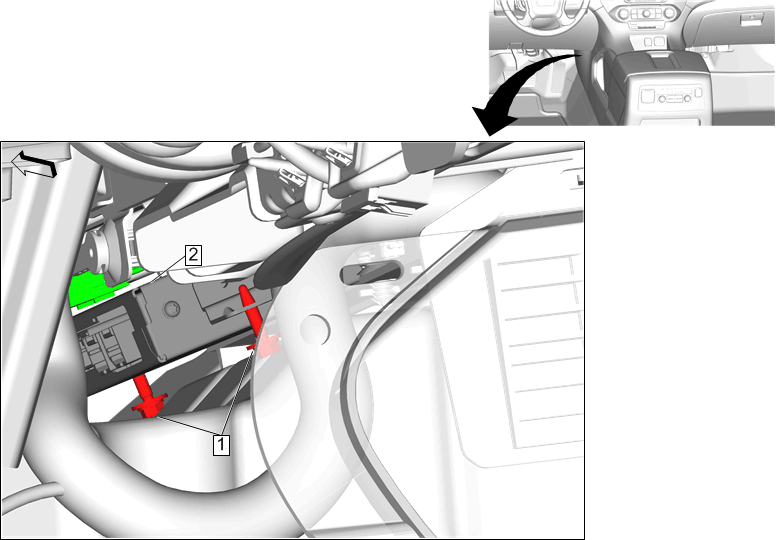

Fig 1: Human Machine Interface Control Module Bypass Module (Chevrolet/GMC With DCK Or D07)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Front Floor Console Extension Panel - Right Side. Refer to Front Floor Console Extension Panel Replacement - Right Side (Chevrolet/GMC) Remove Front Floor Console Extension Panel - Left Side. Refer to Front Floor Console Extension Panel Replacement - Left Side (Chevrolet/GMC)
1	Human Machine Interface Control Module Bypass Module Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Human Machine Interface Control Module Bypass Module Procedure Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedures

Human Machine Interface Control Module Bypass Module Bracket Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Human Machine Interface Control Module Bypass Module
Procedure
Disconnect the electrical connectors.
