Auxiliary Inputs (IO5/IO6)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

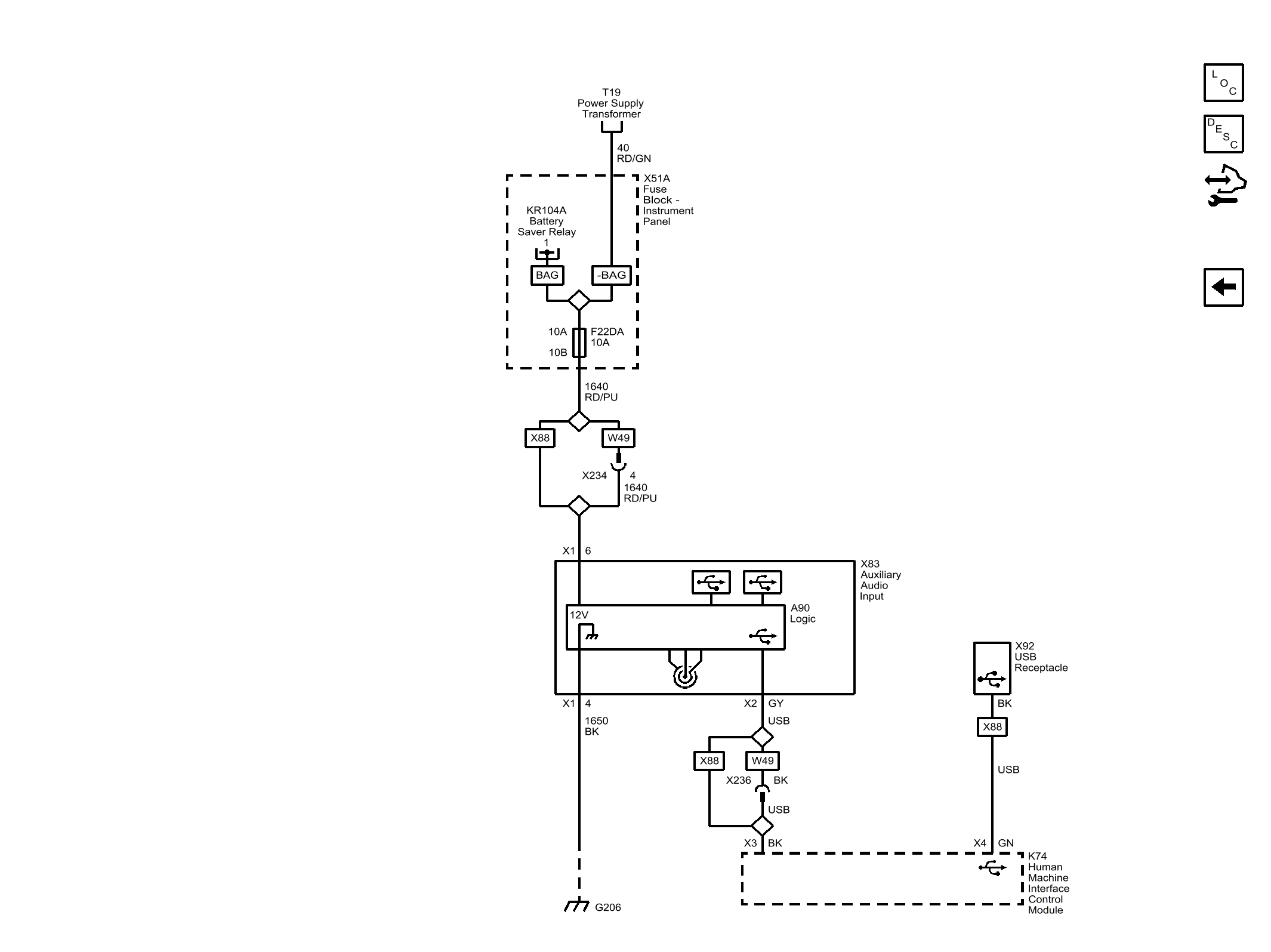

Auxiliary Inputs (IO5/IO6)
