Engine Coolant Temperature Sensor Replacement

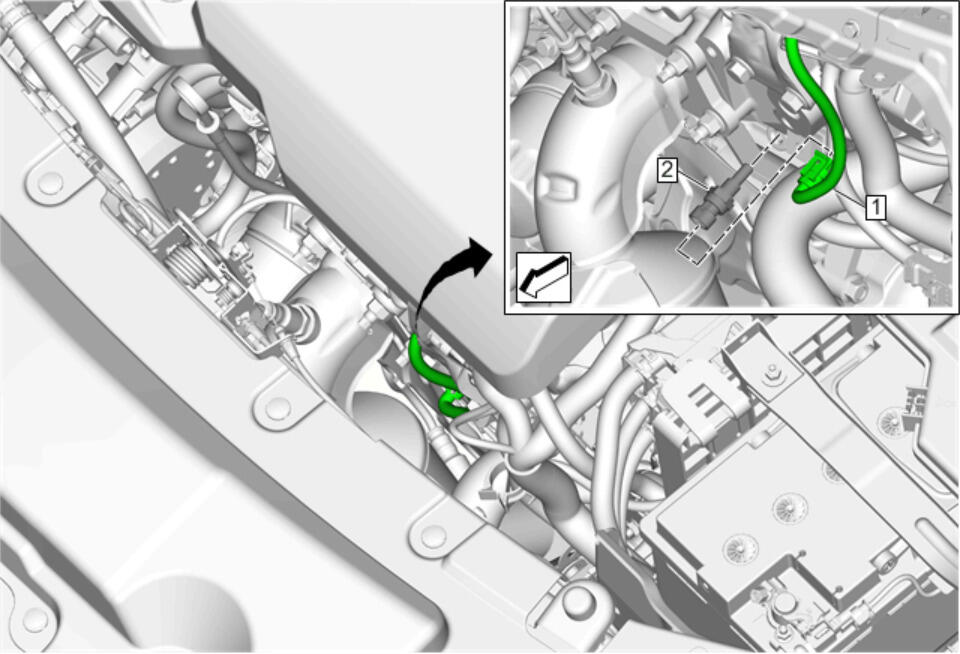

| Callout | Component Name |
|---|---|
| Preliminary Procedure Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (Static Fill) |
|
| 1 | Electrical Connector Procedure Disconnect the electrical connector. |
| 2 | Engine Coolant Temperature Sensor
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 22 N.m (16 lb ft) |
