Manifold Absolute Pressure Sensor Replacement

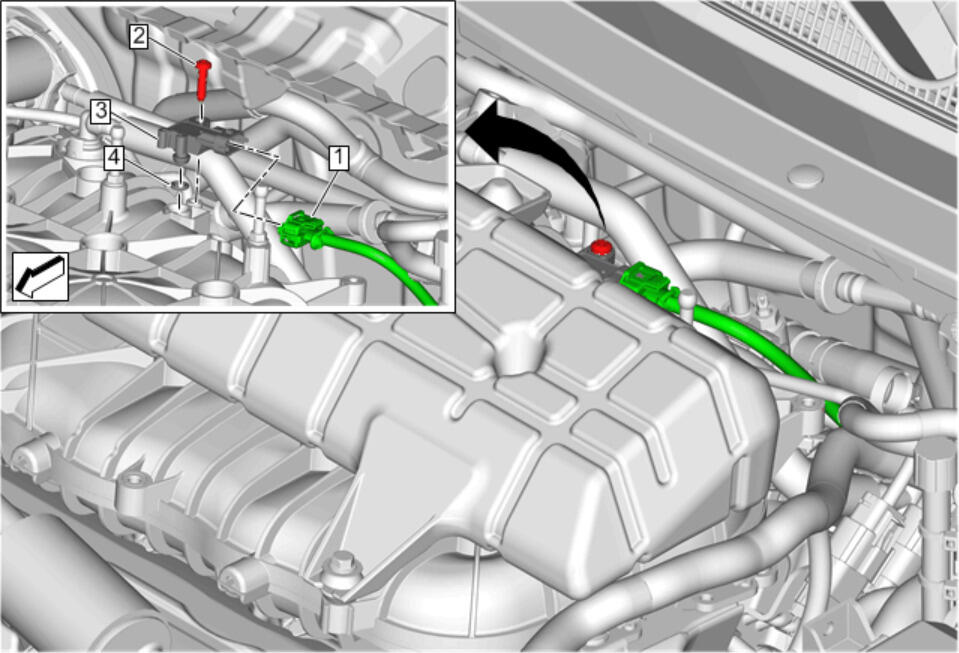

| Callout | Component Name |
|---|---|
| Preliminary Procedure Intake Manifold Cover Replacement |
|
| 1 | Electrical Connector Procedure Disconnect the electrical connector. |
| 2 | Manifold Absolute Pressure Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 3 | Manifold Absolute Pressure Sensor |
| 4 | Manifold Absolute Pressure Sensor Seal
NOTE:
ALWAYS install the seal supplied with the manifold absolute pressure sensor. |
