Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

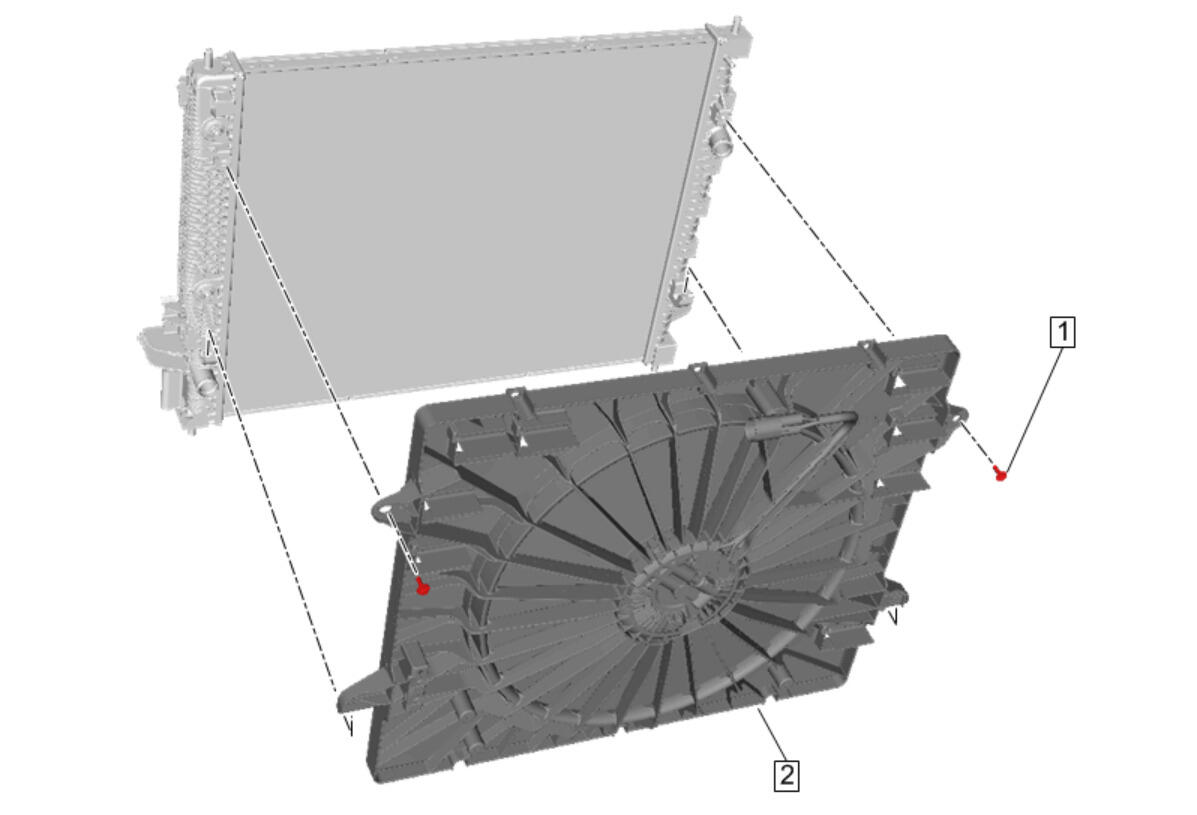

  1. GM4747424Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Fan (2)@Radiator - Install - Engine Coolant Fan Replacement

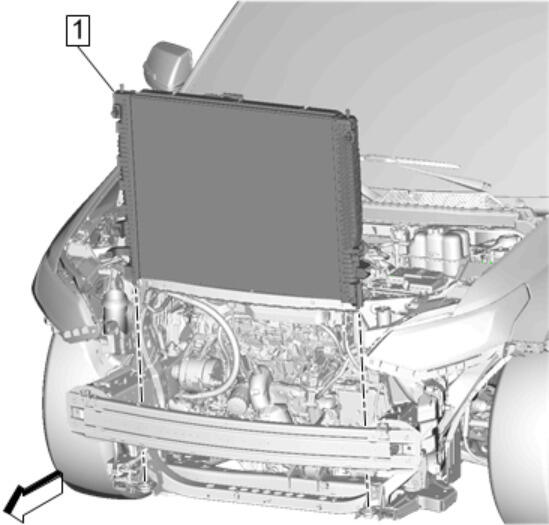

  2. GM4747184Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Fan Module Radiator (1) - Install - Engine Coolant Fan Module Radiator Assembly Removal and Installation (LFY with V08) , or Engine Coolant Fan Module Radiator Assembly Removal and Installation (LFY without V08) , or Engine Coolant Fan Module Radiator Assembly Removal and Installation (LTG)
