Power Transfer Unit Cover Housing, Input Disconnect Shaft, Input Shaft, and Cover Removal
Power Transfer Unit Cover Housing, Input Disconnect Shaft, Input Shaft, and Cover Removal

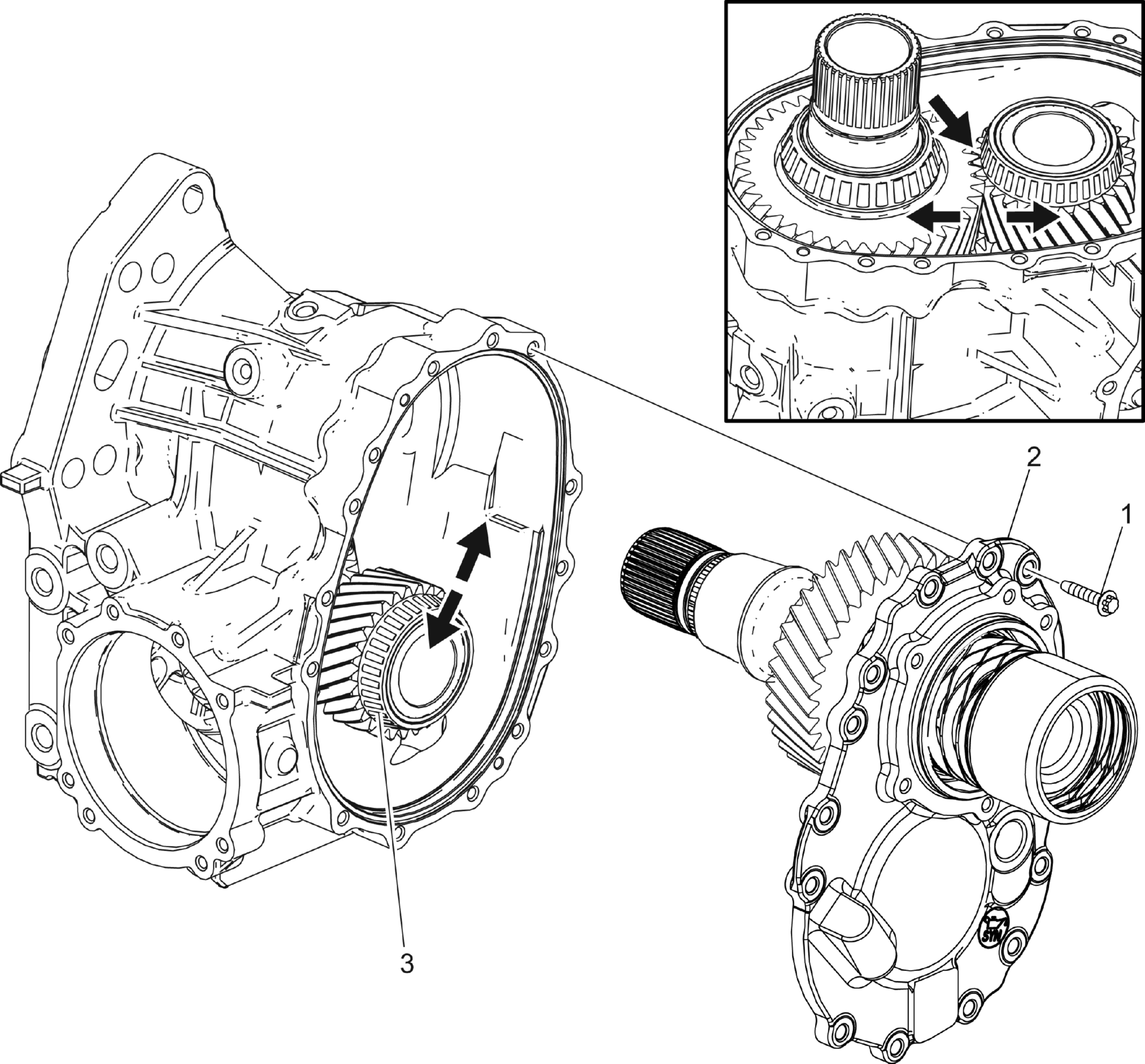

| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Cover Housing Bolt [14x] |
| 2 | Power Transfer Unit Cover Housing
NOTE:
The gear teeth to the input disconnect shaft are behind the bearing to the idler shaft. |
| 3 | Power Transfer Unit Idler Shaft
NOTE:
Use the rear output shaft hole to move the idler shaft. |
