Camshaft Position Sensor Replacement - Intake

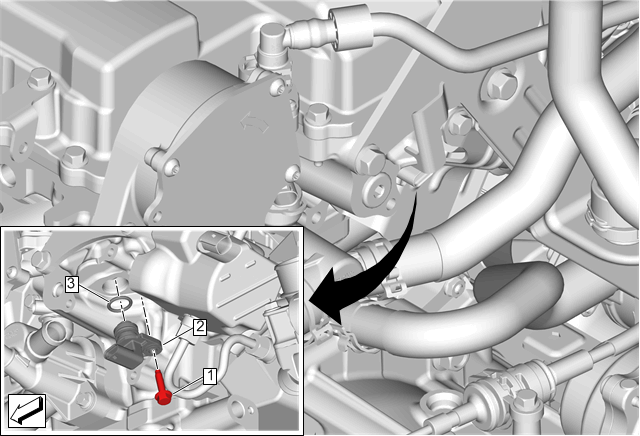

Callout	Component Name
Preliminary Procedures Charge Air Cooler Outlet Air Hose Replacement Disconnect the electrical connector.
1	Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Sensor
3	Camshaft Position Sensor Seal Procedure Install a NEW seal. Lubricate the NEW seal with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers NOTE: A NEW sensor will come with a NEW seal.
