Engine Oil Pressure Sensor Replacement

Callout	Component Name
Preliminary Procedures Exhaust Front Pipe Replacement (LTG) Disconnect the electrical connector.

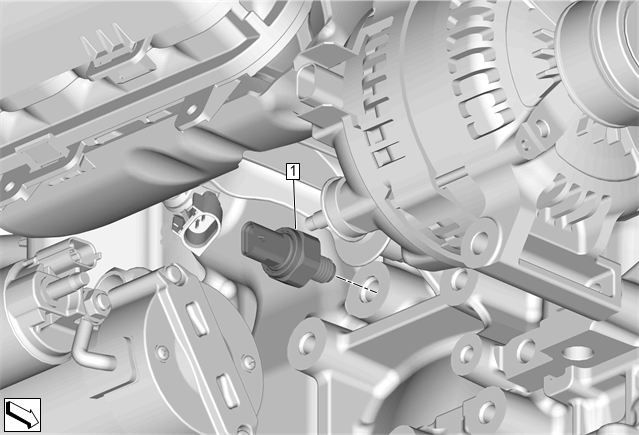

1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Tighten 35 N.m (26 lb ft)

Callout

Component Name

Preliminary Procedures

Engine Oil Pressure Sensor

CAUTION:

Tighten
35 N.m (26 lb ft)
