Installation Procedure

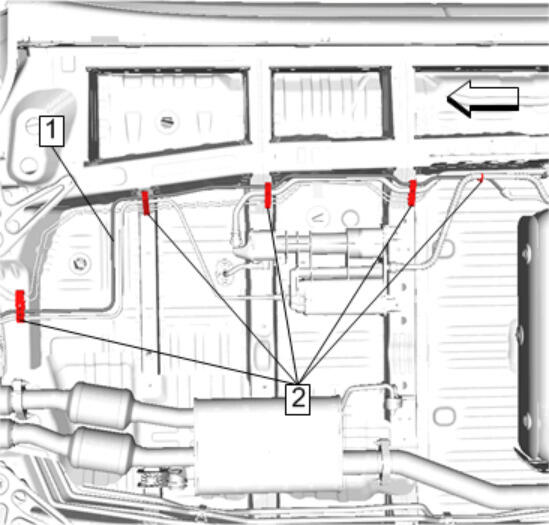

  1. GM4749754

    Fuel Feed Pipe (1) - Install

  2. Fuel Feed Pipe (1) @ Retainer (2) - Install [5x]
  3. Fuel Feed Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service

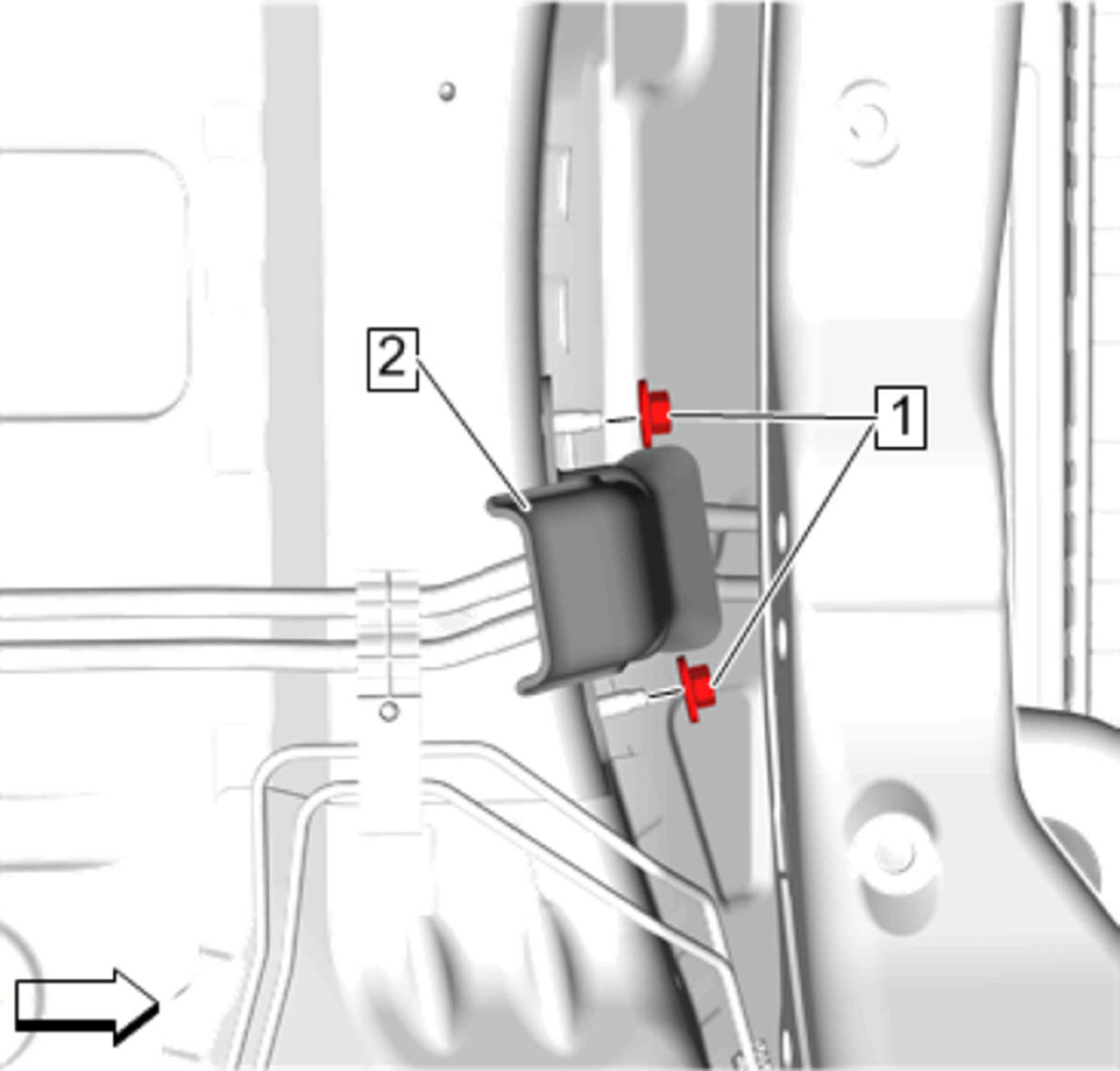

  4. GM5146361

    Fuel Feed Pipe Protector (2) - Install

  5. Fuel Feed Pipe Protector Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
  6. Lower the vehicle.

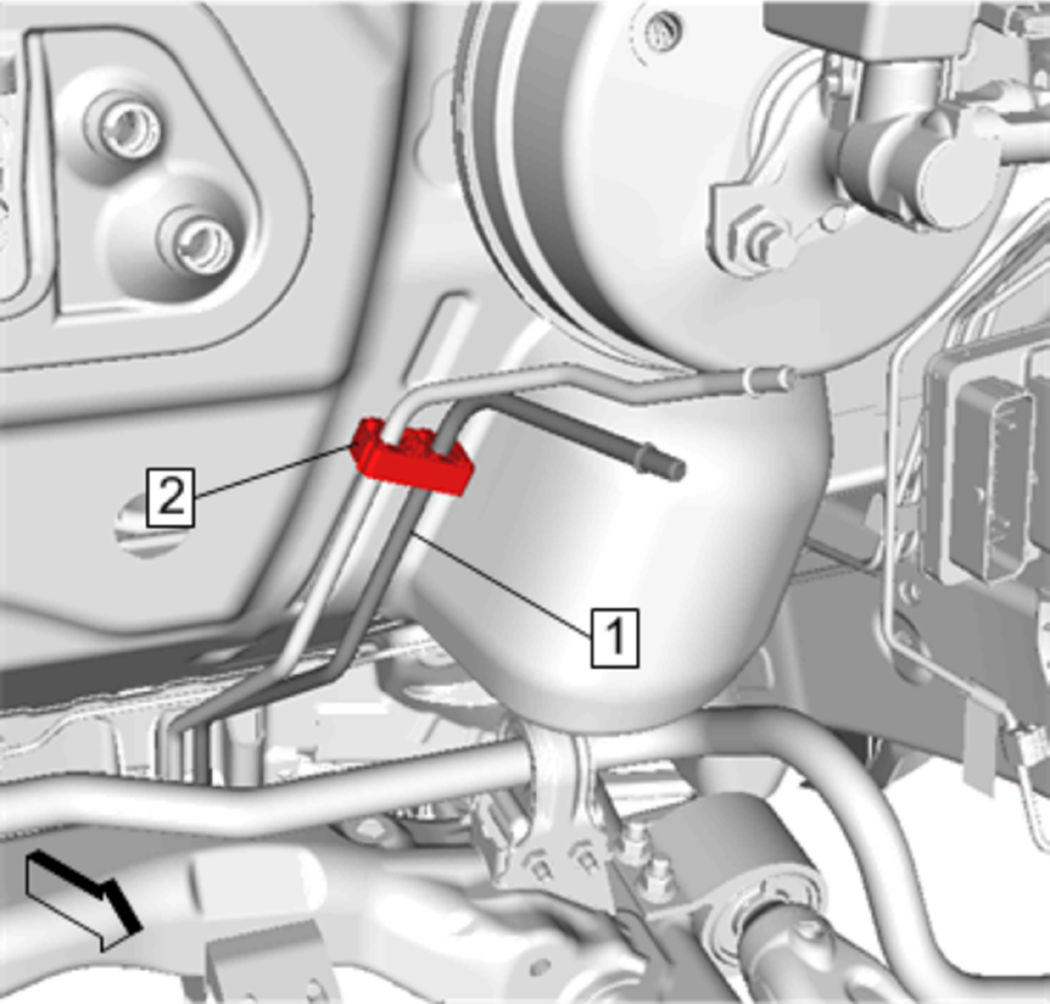

  7. GM4339616

    Fuel Feed Pipe (1) @ Retainer (2) - Install

  8. Fuel Feed Front Pipe - Connect - Plastic Collar Quick Connect Fitting Service
