Removal Procedure

  1. Fuel Injection Fuel Rail Noise Shield - Remove - Fuel Injection Fuel Rail Noise Shield Replacement
  2. Fuel Feed Intermediate Pipe - Remove and DISCARD - Fuel Feed Intermediate Pipe Replacement
  3. Fuel Injection Fuel Rail Fuel Pressure Sensor - Remove - Fuel Injection Fuel Rail Fuel Pressure Sensor Replacement
  4. GM4791001
    NOTE:

    The fuel injection fuel rail wiring harness is clipped onto the fuel rail.

    Remove the fuel injection fuel rail wiring harness (1).

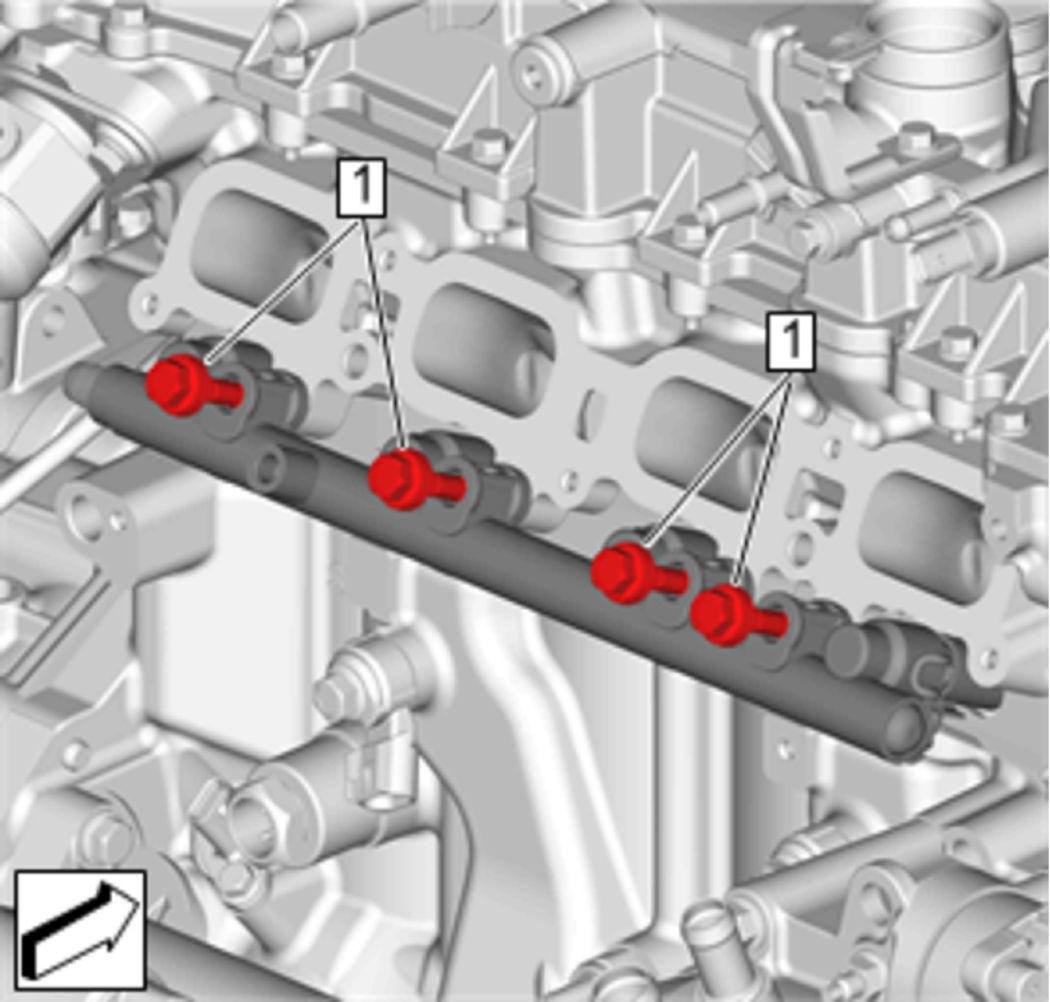

  5. GM4790075
    NOTE:

    The fuel rail bolts are captured in the fuel rail assembly. Ensure the bolt is completely loosened, and the threads are no longer engaged. Use a suitable tool to apply enough force to pull the bolt straight out of the fuel rail.

    Remove the fuel injection fuel rail bolts (1) including the upper grommets.

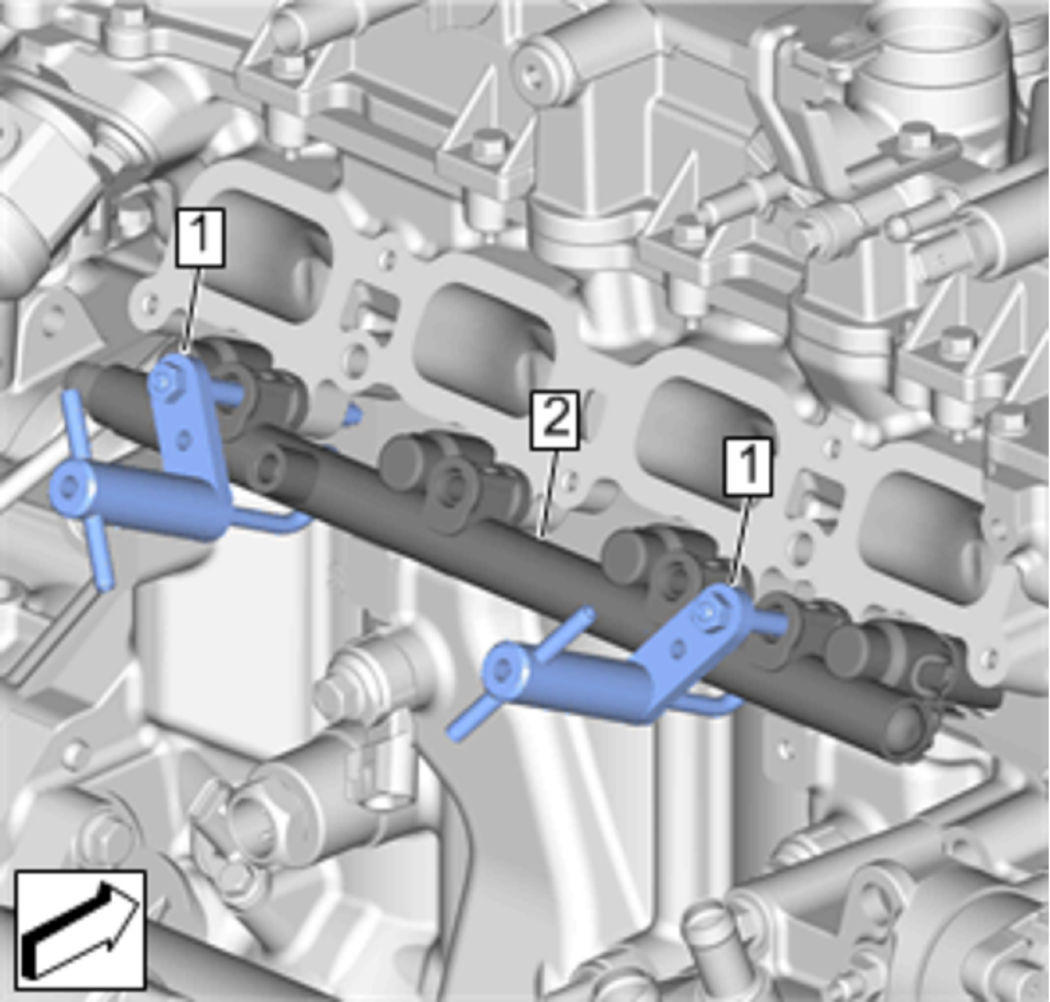

  6. GM4791011

    Install the EN-49248  remover to the fuel injection rail.

    NOTE:
    • The hook of the portion of the EN-49248  remover MUST be properly seated on the underside of the fuel injection fuel rail.
    • Turn BOTH handles simultaneously, in small, even increments.
    • Do NOT twist the fuel injector fuel rail while removing.
  7. Using the EN-49248  remover (1), slowly work the fuel injection fuel rail (2) upwards, in small, even increments.
  8. Once the fuel injection fuel rail (2) is free, remove the EN-49248  remover (1), and remove the fuel rail from the vehicle.
