Removal Procedure

WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

  1. Fuel Tank - Remove - Fuel Tank Replacement

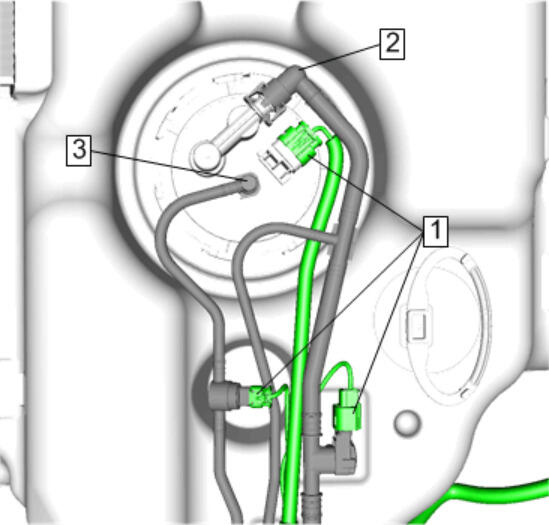

  2. GM4292617

    Electrical Connector (1) - Disconnect [3x]

  3. Evaporative Emission Canister Vent Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
  4. Fuel Pump Fuel Feed Hose (3) - Disconnect - Plastic Collar Quick Connect Fitting Service

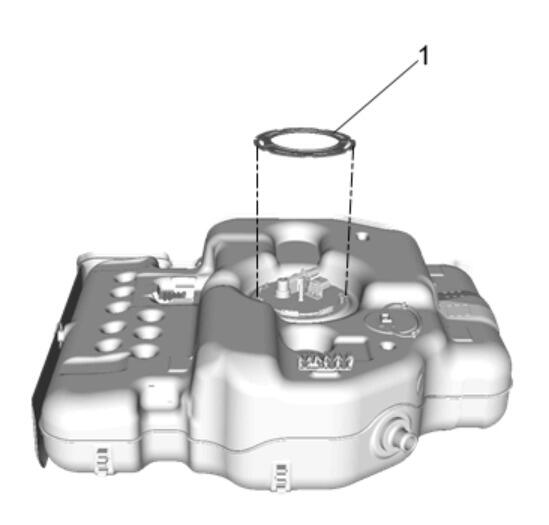

  5. GM4292619

    Fuel Pump Lock Ring (1) - Remove - CH 45722  Fuel Sender Lock Ring Wrench

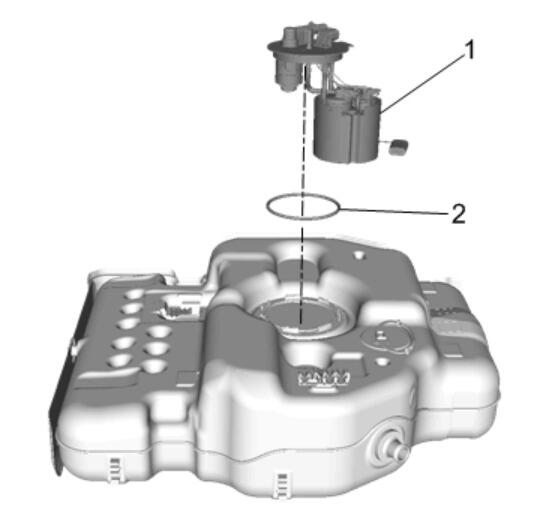

  6. GM4292621

    Fuel Tank Fuel Pump Module (1) - Remove

  7. O-Ring (2) - Remove and DISCARD
