Installation Procedure

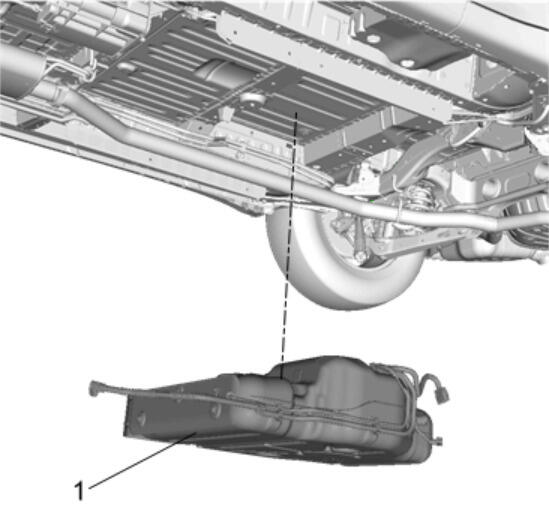

  1. GM4743231

    Place a suitable adjustable jack under the fuel tank.

  2. Fuel Tank (1) - Install

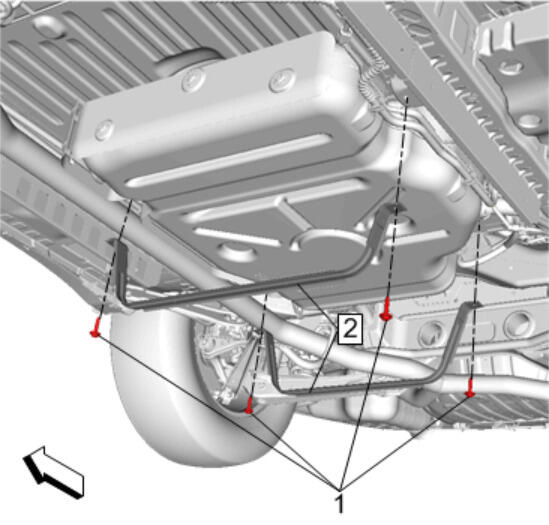

  3. GM4743228

    Fuel Tank Strap (2) - Install [2x]

    4. CAUTION:

    Refer to Fastener Caution .

  4. Fuel Tank Strap Bolt (1) - Install and tighten [4x] 22 N.m (16 lb ft)

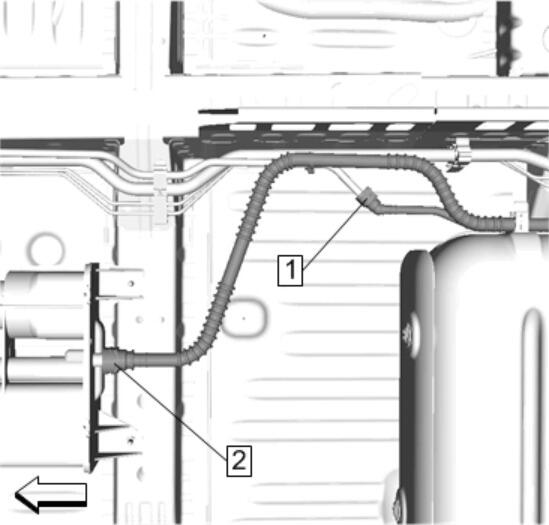

  5. GM4743202

    Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service

  6. Fuel Pump Fuel Feed Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

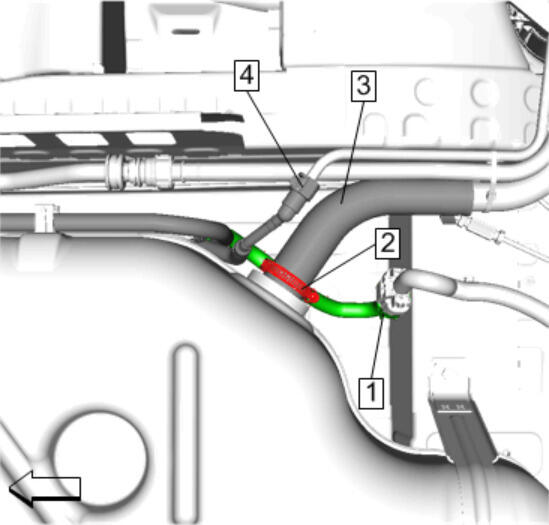

  7. GM4743193

    Evaporative Emission Canister Vent Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  8. Fuel Tank Filler Hose (3) - Install
  9. Fuel Tank Filler Hose Clamp (2) - Install and tighten 4 N.m (35 lb in)
  10. Wiring Harness (1) - Connect
  11. Refill the fuel tank.
  12. Inspect for fuel leaks.
