Fuel Tank Shield Replacement

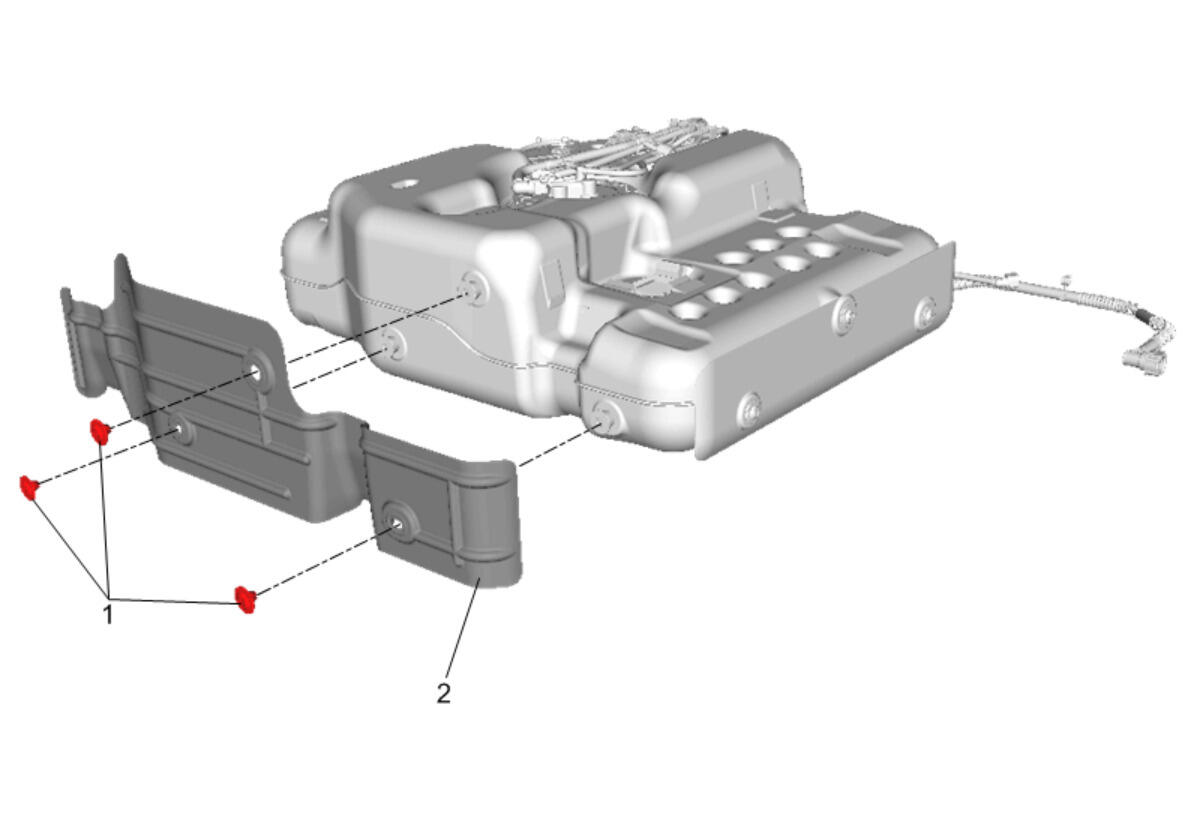

GM4292588
Callout Component Name
Preliminary Procedure
Fuel Tank Replacement
1 Fuel Tank Heat Shield Retainer [3x]
CAUTION:

Refer to Fastener Caution .
2 Fuel Tank Shield
