Intake Air Pressure and Temperature Sensor Replacement

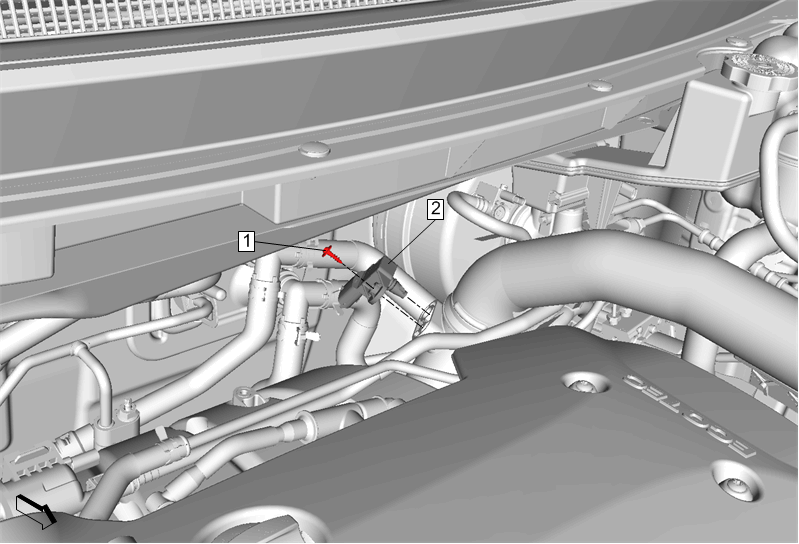

GM4839638
Callout Component Name
1 Intake Air Pressure and Temperature Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Intake Air Pressure and Temperature Sensor
Procedure
Disconnect the electrical connector.
